 Заголовок сообщения: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 10, 2012 09:39
Не в сети

Зарегистрирован: Пн дек 10, 2012 09:16
Сообщений: 10

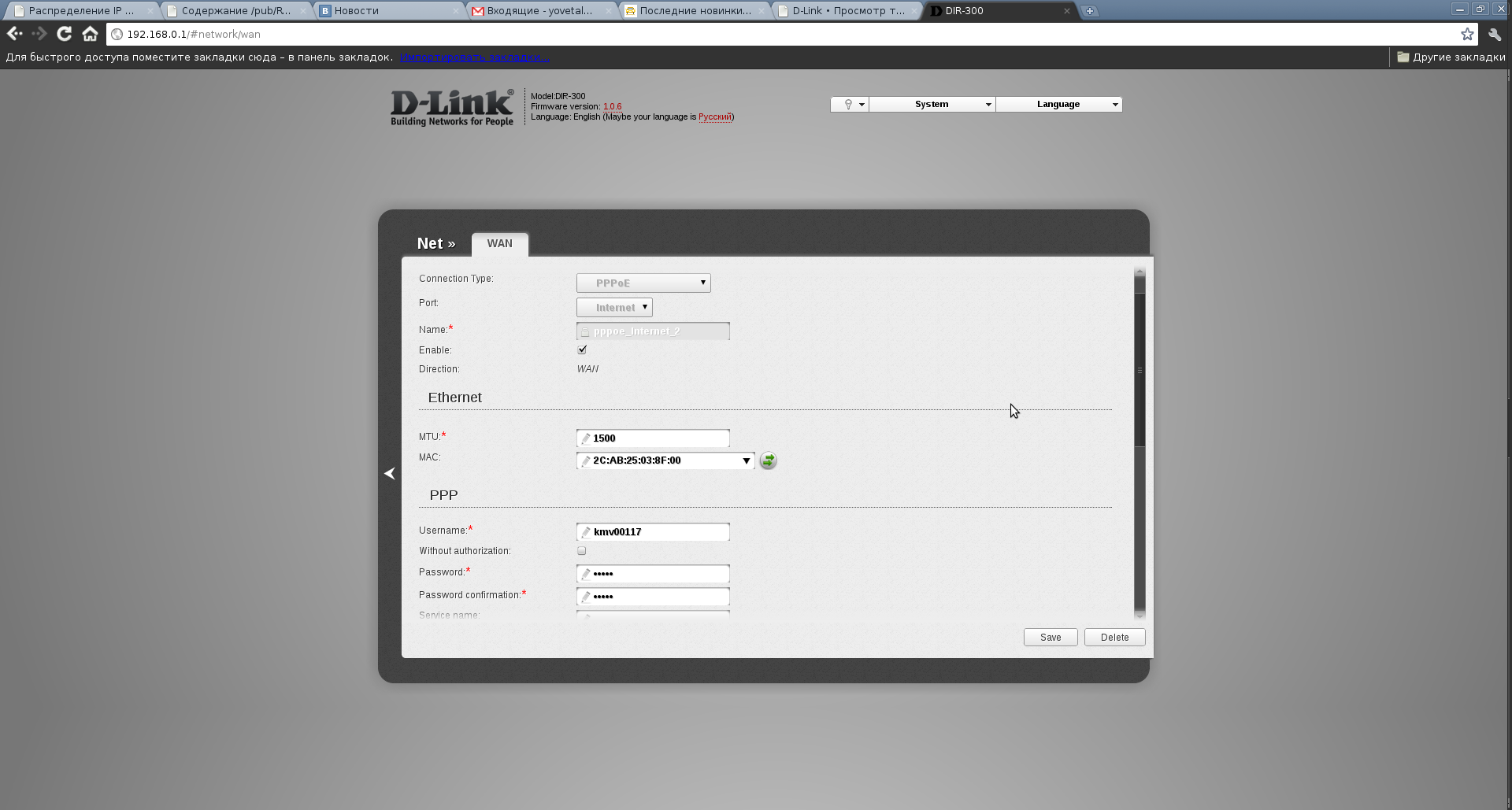

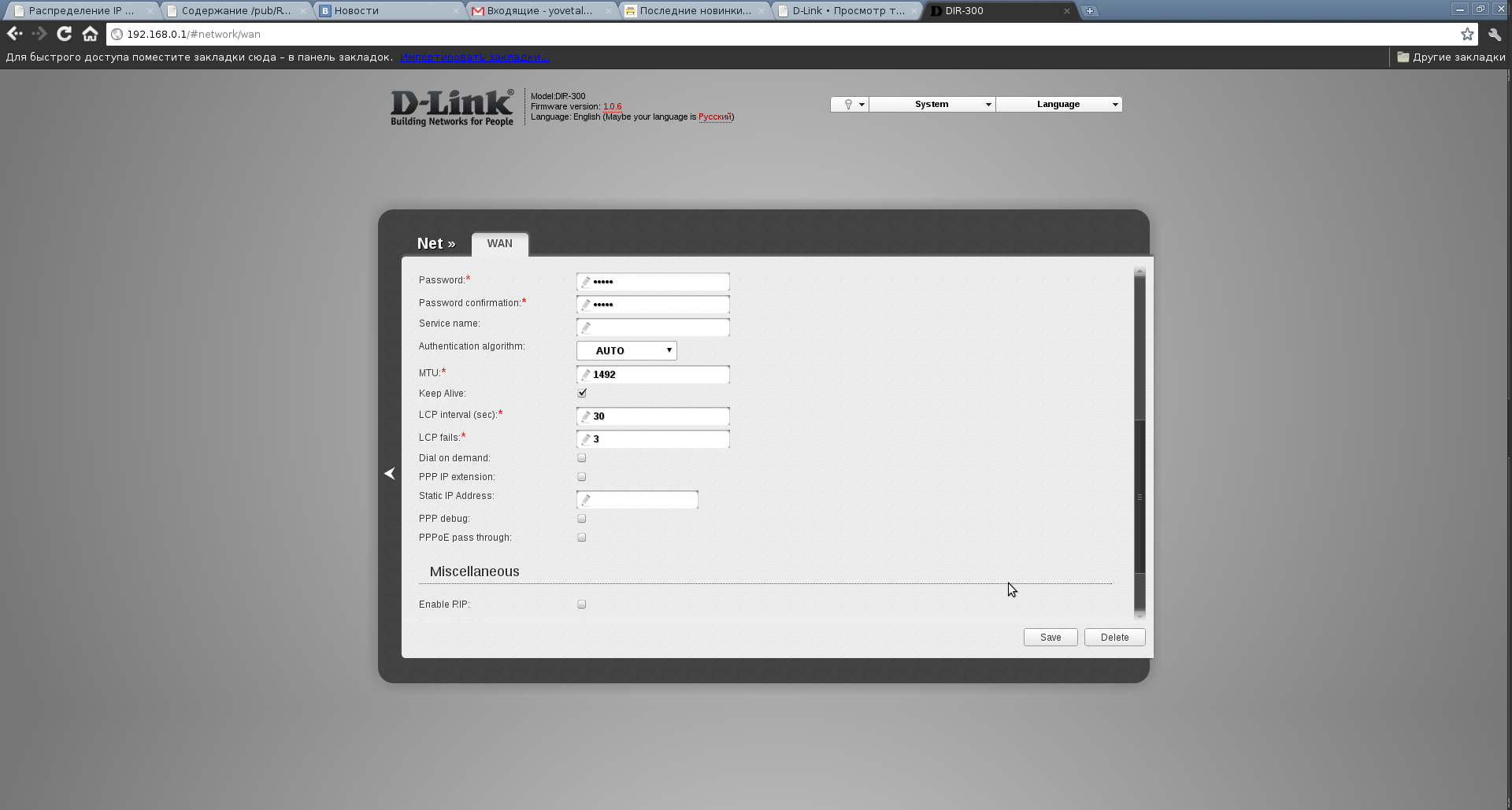

Есть проблема... Купили партию DIR-300/A/C1. Настраиваю PPPoE соединение, сохраняю настройки - все сразу работает. Но после перезагрузки маршрутизатора PPPoE просто не поднимается... Если на него зайти по Telnet и выполнить команду "pppd file <путь до профиля>" то соединение сразу стартует. Bootloader и прошивку обновил до 1.0.6.


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 10, 2012 11:19
Не в сети
Сотрудник D-LINK
Сотрудник D-LINK

Зарегистрирован: Ср окт 17, 2012 10:02
Сообщений: 2921
Откуда: D-Link, Ryazan
Покажите логи, все должно работать.

_________________
Полезные настройки


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 10, 2012 11:34
Не в сети

Зарегистрирован: Пн дек 10, 2012 09:16
Сообщений: 10
Лог в режиме отладки:
Скрытый текст: показать
Jan 1 00:00:05 syslogd started: BusyBox v1.19.2
Jan 1 00:00:05 kernel: /init
Jan 1 00:00:05 kernel: icache: 16kB/16B, dcache: 8kB/16B, scache: 0kB/0B
Jan 1 00:00:05 kernel: NR_IRQS:48
Jan 1 00:00:05 kernel: PID hash table entries: 128 (order: 7, 512 bytes)
Jan 1 00:00:05 kernel: console [ttyS0] enabled
Jan 1 00:00:05 kernel: Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Jan 1 00:00:05 kernel: Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Jan 1 00:00:05 kernel: Memory: 27048k/32768k available (2486k kernel code, 5720k reserved, 482k data, 108k init, 0k highmem)
Jan 1 00:00:05 kernel: Calibrating delay loop... 389.12 BogoMIPS (lpj=1945600)
Jan 1 00:00:05 kernel: Mount-cache hash table entries: 512
Jan 1 00:00:05 kernel: net_namespace: 524 bytes
Jan 1 00:00:05 resident: init lan
Jan 1 00:00:05 kernel: NET: Registered protocol family 2
Jan 1 00:00:05 kernel: IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
Jan 1 00:00:05 kernel: TCP established hash table entries: 1024 (order: 1, 8192 bytes)
Jan 1 00:00:05 kernel: TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
Jan 1 00:00:05 kernel: TCP: Hash tables configured (established 1024 bind 1024)
Jan 1 00:00:05 kernel: TCP reno registered
Jan 1 00:00:05 kernel: NET: Registered protocol family 1
Jan 1 00:00:05 kernel: squashfs: version 4.0 (2009/01/31) Phillip Lougher
Jan 1 00:00:05 kernel: msgmni has been set to 52
Jan 1 00:00:05 kernel: io scheduler noop registered
Jan 1 00:00:05 kernel: io scheduler cfq registered (default)
Jan 1 00:00:05 kernel: Realtek GPIO Driver for Flash Reload Default
Jan 1 00:00:05 kernel: Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
Jan 1 00:00:05 kernel: serial8250: ttyS0 at MMIO 0x18002000 (irq = 23) is a 16550A
Jan 1 00:00:05 kernel: PPP generic driver version 2.4.2
Jan 1 00:00:05 kernel: MPPE/MPPC encryption/compression module registered
Jan 1 00:00:05 kernel: NET: Registered protocol family 24
Jan 1 00:00:05 kernel: RTL8192C/RTL8188C driver version 1.4 (2010-12-22)
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: 96C - 40MHz Clock Source
Jan 1 00:00:05 kernel: vendor_deivce_id=819110ec
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: Probing RTL8186 10/100 NIC-kenel stack size order[3]...
Jan 1 00:00:05 kernel: chip name: 8196C, chip revid: 4
Jan 1 00:00:05 kernel: Set 8196C PHY Patch OK
Jan 1 00:00:05 kernel: NOT YET
Jan 1 00:00:05 kernel: Set threshould idx 0
Jan 1 00:00:05 kernel: eth0 added. vid=9 Member port 0x1...
Jan 1 00:00:05 kernel: eth1 added. vid=8 Member port 0x10...
Jan 1 00:00:05 kernel: eth2 added. vid=9 Member port 0x2...
Jan 1 00:00:05 kernel: eth3 added. vid=9 Member port 0x4...
Jan 1 00:00:05 kernel: eth4 added. vid=9 Member port 0x8...
Jan 1 00:00:05 resident: start ipoe
Jan 1 00:00:05 start_ip: begin (br0 -> br0)
Jan 1 00:00:05 resident: start ipoe (v2142479432) on br0
Jan 1 00:00:05 kernel: eth5 added. vid=9 Member port 0x0...
Jan 1 00:00:05 kernel: [peth0] added, mapping to [eth1]...
Jan 1 00:00:05 kernel: SPI INIT
Jan 1 00:00:05 kernel: flash device: 0x400000 at 0xbfe00000
Jan 1 00:00:05 kernel: ========================= Registed SPI Flash Model =========================
Jan 1 00:00:05 kernel: |No chipID Sft chipSize blkSize secSize pageSize sdCk opCk chipName |
Jan 1 00:00:05 kernel: | 0 c22016h 0h 400000h 10000h 1000h 100h 86 0 MX25L3205D/E|
Jan 1 00:00:05 kernel: ============================================================================
Jan 1 00:00:05 kernel: SPI flash(MX25L3205D/E) was found at CS0, size 0x400000
Jan 1 00:00:05 kernel: flash_bank_1: squashfs filesystem found at offset 0x120000
Jan 1 00:00:05 kernel: Creating 7 MTD partitions on "flash_bank_1":
Jan 1 00:00:05 kernel: 0x000000000000-0x000000010000 : "boot"
Jan 1 00:00:05 kernel: 0x000000010000-0x000000020000 : "MAC"
Jan 1 00:00:05 kernel: 0x000000020000-0x000000030000 : "config"
Jan 1 00:00:05 kernel: 0x000000030000-0x000000130000 : "kernel"
Jan 1 00:00:05 kernel: 0x000000120000-0x000000400000 : "rootfs"
Jan 1 00:00:05 kernel: 0x000000030000-0x000000400000 : "Linux"
Jan 1 00:00:05 kernel: 0x000000000000-0x000000400000 : "ALL"
Jan 1 00:00:05 kernel: Netfilter messages via NETLINK v0.30.
Jan 1 00:00:05 kernel: nf_conntrack version 0.5.0 (512 buckets, 2048 max)
Jan 1 00:00:05 kernel: ctnetlink v0.93: registering with nfnetlink.
Jan 1 00:00:05 kernel: ip_tables: (C) 2000-2006 Netfilter Core Team
Jan 1 00:00:05 kernel: arp_tables: (C) 2002 David S. Miller
Jan 1 00:00:05 kernel: TCP cubic registered
Jan 1 00:00:05 kernel: NET: Registered protocol family 17
Jan 1 00:00:05 kernel: 802.1Q VLAN Support v1.8 Ben Greear
Jan 1 00:00:05 kernel: All bugs added by David S. Miller
Jan 1 00:00:05 kernel: Netlink[Kernel] create socket for igmp ok.
Jan 1 00:00:05 kernel: VFS: Mounted root (squashfs filesystem) readonly on device 31:4.
Jan 1 00:00:05 kernel: Freeing unused kernel memory: 108k freed
Jan 1 00:00:05 kernel: -------> Set MIB from /etc/Wireless/RTL8192CD.dat
Jan 1 00:00:05 kernel: <------- Set MIB from /etc/Wireless/RTL8192CD.dat Success
Jan 1 00:00:05 kernel: [PHY_ConfigMACWithParaFile][MACPHY_REG_92C]
Jan 1 00:00:05 kernel: ===> Load_92C_Firmware
Jan 1 00:00:05 kernel: <=== Load_92C_Firmware
Jan 1 00:00:06 update_ipfilters: error in params
Jan 1 00:00:06 resident: init wan
Jan 1 00:00:07 kernel: Wan link is down
Jan 1 00:00:07 resident: start ipoe
Jan 1 00:00:07 start_ip: begin (eth1 -> eth1_1)
Jan 1 00:00:07 resident: start ipoe (v718040968) on eth1
Jan 1 00:00:07 resident: start pppd on eth1_2
Jan 1 00:00:07 resident: stop pppd on eth1_2
Jan 1 00:00:07 event: send event "ipoe down"
Jan 1 00:00:07 resident: set lock on eth1_2, with "/var/lock/eth1_2.lock"
Jan 1 00:00:07 resident: stopped link(contype:ppp, iface:eth1_2)
Jan 1 00:00:08 pppd[158]: RP-PPPoE plugin version 3.3 compiled against pppd 2.4.4
Jan 1 00:00:08 pppd[159]: pppd 2.4.4 started by admin, uid 0
Jan 1 00:00:08 kernel: Wan link is up!
Jan 1 00:00:09 event: send event "ipoe up"
Jan 1 00:00:11 kernel: device eth0 entered promiscuous mode
Jan 1 00:00:11 kernel: device eth2 entered promiscuous mode
Jan 1 00:00:11 kernel: device eth3 entered promiscuous mode
Jan 1 00:00:11 kernel: device eth4 entered promiscuous mode
Jan 1 00:00:11 kernel: device wlan0 entered promiscuous mode
Jan 1 00:00:11 kernel: device eth7 entered promiscuous mode
Jan 1 00:00:11 kernel: -------> Set MIB from /etc/Wireless/RTL8192CD.dat
Jan 1 00:00:11 kernel: <------- Set MIB from /etc/Wireless/RTL8192CD.dat Success
Jan 1 00:00:11 kernel: [PHY_ConfigMACWithParaFile][MACPHY_REG_92C]
Jan 1 00:00:11 kernel: ===> Load_92C_Firmware
Jan 1 00:00:11 kernel: <=== Load_92C_Firmware
Jan 1 00:00:11 kernel: br0: port 6(eth7) entering learning state
Jan 1 00:00:11 kernel: br0: port 5(wlan0) entering learning state
Jan 1 00:00:11 kernel: br0: port 4(eth4) entering learning state
Jan 1 00:00:11 kernel: br0: port 3(eth3) entering learning state
Jan 1 00:00:11 kernel: br0: port 2(eth2) entering learning state
Jan 1 00:00:11 kernel: br0: port 1(eth0) entering learning state
Jan 1 00:00:11 telnet-start: begin...
Jan 1 00:00:11 telnet-start: running on 23 port
Jan 1 00:00:11 telnet-start: succes!
Jan 1 00:00:11 resident: Out init_device
Jan 1 00:00:11 kernel: GPIO resident_pid=15
Jan 1 00:00:11 resident: record = action:up;iface:br0;contag:0;ipaddr:192.168.0.1;netmask:255.255.255.0;
Jan 1 00:00:11 resident: phys_iface br0
Jan 1 00:00:11 test: ip_type = (null)
Jan 1 00:00:11 resident: resident_ipoe_handler - Set default type: ipv4
Jan 1 00:00:11 resident: phys_iface
Jan 1 00:00:11 resident: resident_ipoe_handler - 1
Jan 1 00:00:11 resident: resident_ipoe_handler - 3, name: br0
Jan 1 00:00:11 resident: resident_ipoe_handler - l2:br0, l3:br0, tun:, ip_type:0
Jan 1 00:00:11 resident: resident_ipoe_handler - ipv4
Jan 1 00:00:11 resident: start ip_is_up on iface br0
Jan 1 00:00:11 resident: ip_is_up for link br0
Jan 1 00:00:12 resident: start dhcp+dns on br0
Jan 1 00:00:12 upnp: start - begin
Jan 1 00:00:12 syslog: SNet version started
Jan 1 00:00:12 miniupnpd[204]: HTTP listening on port 35801
Jan 1 00:00:12 miniupnpd[204]: Listening for NAT-PMP traffic on port 5351
Jan 1 00:00:12 resident: record = action:down;iface:eth1;contag:1;
Jan 1 00:00:12 resident: phys_iface eth1
Jan 1 00:00:12 test: ip_type = (null)
Jan 1 00:00:12 resident: resident_ipoe_handler - Set default type: ipv4
Jan 1 00:00:12 resident: phys_iface
Jan 1 00:00:12 resident: resident_ipoe_handler - 2
Jan 1 00:00:12 resident: resident_ipoe_handler - 3, name: eth1_1
Jan 1 00:00:12 resident: resident_ipoe_handler - l2:eth1, l3:eth1_1, tun:, ip_type:0
Jan 1 00:00:12 resident: ip_is_down on eth1_1
Jan 1 00:00:13 dnsmasq[212]: started, version cachesize 512
Jan 1 00:00:13 dnsmasq[212]: compile time options: no-IPv6 GNU-getopt no-DBus no-i18n no-IDN DHCP no-DHCPv6 no-Lua no-TFTP no-conntrack
Jan 1 00:00:13 dnsmasq-dhcp[212]: DHCP, IP range 192.168.0.2 -- 192.168.0.100, lease time 1d
Jan 1 00:00:13 dnsmasq[212]: read /tmp/hosts - 2 addresses
Jan 1 00:00:13 dnsmasq-dhcp[212]: read /etc/ethers - 0 addresses
Jan 1 00:00:13 resident: record = action:up;iface:eth1;contag:1;ipaddr:192.168.172.121 ;netmask:255.255.240.0 ;gateway:192.168.160.1 ;dns1:92.42.8.2;dns2:93.90.209.126;
Jan 1 00:00:13 resident: phys_iface eth1
Jan 1 00:00:13 test: ip_type = (null)
Jan 1 00:00:13 resident: resident_ipoe_handler - Set default type: ipv4
Jan 1 00:00:13 resident: phys_iface
Jan 1 00:00:13 resident: resident_ipoe_handler - 2
Jan 1 00:00:13 resident: resident_ipoe_handler - 3, name: eth1_1
Jan 1 00:00:13 resident: resident_ipoe_handler - l2:eth1, l3:eth1_1, tun:, ip_type:0
Jan 1 00:00:13 resident: resident_ipoe_handler - ipv4
Jan 1 00:00:13 resident: start ip_is_up on iface eth1_1
Jan 1 00:00:13 resident: ip_is_up for link eth1_1
Jan 1 00:00:13 set_dhcp_routes: set routes for iface eth1
Jan 1 00:00:13 resident: update dns
Jan 1 00:00:13 dnsmasq[212]: read /tmp/hosts - 2 addresses
Jan 1 00:00:13 dnsmasq-dhcp[212]: read /etc/ethers - 0 addresses
Jan 1 00:00:13 dnsmasq[212]: using nameserver 93.90.209.126#53
Jan 1 00:00:13 dnsmasq[212]: using nameserver 92.42.8.2#53
Jan 1 00:00:13 resident: update rip
Jan 1 00:00:13 resident: update igmpx
Jan 1 00:00:13 resident: stop igmpx
Jan 1 00:00:14 iface: this is eth1
Jan 1 00:00:14 resident: igmpx eth1
Jan 1 00:00:14 syslog: Loading liblogger v2.0.2
Jan 1 00:00:14 syslog: upstream ifaces: eth1
Jan 1 00:00:14 syslog: downstream ifaces: br0
Jan 1 00:00:14 syslog: hews interval = 120.0 sec
Jan 1 00:00:14 syslog: doublet join enabled
Jan 1 00:00:14 syslog: Using old argv style
Jan 1 00:00:14 syslog: daemonizing ...
Jan 1 00:00:14 resident: update igmpx compiled
Jan 1 00:00:14 syslog: kernel multicast version is 305 (v3.05 ?)
Jan 1 00:00:14 syslog: kernel mroute inited
Jan 1 00:00:14 syslog: proxy prepared
Jan 1 00:00:14 syslog: vifi #0 added for eth1
Jan 1 00:00:14 syslog: vifi #1 added for br0
Jan 1 00:00:14 syslog: valid VIF's configured: upstreams=1, downstreams=1. Ok.
Jan 1 00:00:21 kernel: br0: port 6(eth7) entering forwarding state
Jan 1 00:00:21 kernel: br0: port 5(wlan0) entering forwarding state
Jan 1 00:00:21 kernel: br0: port 4(eth4) entering forwarding state
Jan 1 00:00:21 kernel: br0: port 3(eth3) entering forwarding state
Jan 1 00:00:21 kernel: br0: port 2(eth2) entering forwarding state
Jan 1 00:00:21 kernel: br0: port 1(eth0) entering forwarding state
Jan 1 00:00:22 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.167.82 00:1d:7d:92:c9:6f
Jan 1 00:00:22 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.167.82 00:1d:7d:92:c9:6f microsof-152844
Jan 1 00:00:26 dnsmasq-dhcp[212]: DHCPDISCOVER(br0) 00:24:1d:b0:5e:6e
Jan 1 00:00:26 dnsmasq-dhcp[212]: DHCPOFFER(br0) 192.168.0.90 00:24:1d:b0:5e:6e
Jan 1 00:00:26 dnsmasq-dhcp[212]: DHCPREQUEST(br0) 192.168.175.70 00:24:1d:b0:5e:6e
Jan 1 00:00:26 dnsmasq-dhcp[212]: DHCPNAK(br0) 192.168.175.70 00:24:1d:b0:5e:6e wrong server-ID
Jan 1 00:00:31 kernel: TCP: Peer 192.168.0.100:46792/80 unexpectedly shrunk window 475878978:475886218 (repaired)
Jan 1 00:00:35 dnsmasq-dhcp[212]: DHCPDISCOVER(br0) 00:26:2d:3e:fe:8a
Jan 1 00:00:35 dnsmasq-dhcp[212]: DHCPOFFER(br0) 192.168.0.93 00:26:2d:3e:fe:8a
Jan 1 00:00:40 dnsmasq-dhcp[212]: DHCPDISCOVER(br0) 192.168.163.182 00:1d:09:d0:8d:31
Jan 1 00:00:40 dnsmasq-dhcp[212]: DHCPOFFER(br0) 192.168.0.72 00:1d:09:d0:8d:31
Jan 1 00:00:40 dnsmasq-dhcp[212]: DHCPREQUEST(br0) 192.168.163.182 00:1d:09:d0:8d:31
Jan 1 00:00:40 dnsmasq-dhcp[212]: DHCPNAK(br0) 192.168.163.182 00:1d:09:d0:8d:31 wrong server-ID
Jan 1 00:00:43 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.17 40:61:86:b5:54:e3
Jan 1 00:00:43 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.17 40:61:86:b5:54:e3 1-msi
Jan 1 00:00:44 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.164.237 00:24:8c:4d:2d:2a
Jan 1 00:00:44 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.164.237 00:24:8c:4d:2d:2a Zav-Shestakov
Jan 1 00:00:46 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.115 00:19:66:c1:5c:3d
Jan 1 00:00:46 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.115 00:19:66:c1:5c:3d
Jan 1 00:00:47 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.175.70 00:24:1d:b0:5e:6e
Jan 1 00:00:47 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.175.70 00:24:1d:b0:5e:6e 123456789
Jan 1 00:00:49 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.175.69 f4:6d:04:3a:e8:83
Jan 1 00:00:49 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.175.69 f4:6d:04:3a:e8:83
Jan 1 00:01:01 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.173.212 88:ae:1d:14:c4:96
Jan 1 00:01:01 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.173.212 88:ae:1d:14:c4:96
Jan 1 00:01:04 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.163.156 e8:11:32:1e:6e:82
Jan 1 00:01:04 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.163.156 e8:11:32:1e:6e:82
Jan 1 00:01:09 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.166.254 00:26:18:e8:c7:c8
Jan 1 00:01:09 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.166.254 00:26:18:e8:c7:c8 admin-aec37e72c
Jan 1 00:01:22 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.173.163 48:5b:39:3e:e5:f1
Jan 1 00:01:22 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.173.163 48:5b:39:3e:e5:f1
Jan 1 00:01:35 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.206 00:1d:60:38:f9:7f
Jan 1 00:01:35 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.206 00:1d:60:38:f9:7f DNAPC
Jan 1 00:01:37 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.102 14:da:e9:d6:d2:d6
Jan 1 00:01:37 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.102 14:da:e9:d6:d2:d6
Jan 1 00:01:44 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.179 f0:de:f1:92:04:6e
Jan 1 00:01:44 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.179 f0:de:f1:92:04:6e
Jan 1 00:01:44 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.143 00:1c:23:a1:c7:4d
Jan 1 00:01:44 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.143 00:1c:23:a1:c7:4d Root-PC
Jan 1 00:01:46 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.155 00:19:21:34:ae:b5
Jan 1 00:01:46 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.155 00:19:21:34:ae:b5
Jan 1 00:01:51 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.162.137 00:13:d4:a8:6f:fc
Jan 1 00:01:51 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.162.137 00:13:d4:a8:6f:fc b28475be3ece476
Jan 1 00:01:52 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.17 40:61:86:b5:54:e3
Jan 1 00:01:52 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.17 40:61:86:b5:54:e3 1-msi
Jan 1 00:01:55 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.38 e8:9a:8f:df:a0:59
Jan 1 00:01:55 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.38 e8:9a:8f:df:a0:59 1-TOSH
Jan 1 00:02:08 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.175.69 f4:6d:04:3a:e8:83
Jan 1 00:02:08 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.175.69 f4:6d:04:3a:e8:83
Jan 1 00:02:12 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.0 00:25:22:dd:07:e5
Jan 1 00:02:12 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.0 00:25:22:dd:07:e5
Jan 1 00:02:16 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.163.126 00:1e:68:8a:18:33
Jan 1 00:02:16 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.163.126 00:1e:68:8a:18:33 depo
Jan 1 00:02:20 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.175.70 00:24:1d:b0:5e:6e
Jan 1 00:02:20 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.175.70 00:24:1d:b0:5e:6e 123456789
Jan 1 00:02:31 dnsmasq-dhcp[212]: DHCPINFORM(br0) 192.168.174.222 00:25:22:e2:30:f7
Jan 1 00:02:31 dnsmasq-dhcp[212]: DHCPACK(br0) 192.168.174.222 00:25:22:e2:30:f7


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 10, 2012 11:46
Не в сети

Зарегистрирован: Пн дек 10, 2012 09:16
Сообщений: 10
Меня смущают вот эти строчки:
Скрытый текст: показать
Jan 1 00:00:07 resident: start pppd on eth1_2
Jan 1 00:00:07 resident: stop pppd on eth1_2
Jan 1 00:00:07 event: send event "ipoe down"
Jan 1 00:00:07 resident: set lock on eth1_2, with "/var/lock/eth1_2.lock"
Jan 1 00:00:07 resident: stopped link(contype:ppp, iface:eth1_2)
Jan 1 00:00:08 pppd[158]: RP-PPPoE plugin version 3.3 compiled against pppd 2.4.4
Jan 1 00:00:08 pppd[159]: pppd 2.4.4 started by admin, uid 0
Jan 1 00:00:08 kernel: Wan link is up!


Почему он сначала ppp поднимает а потом его вырубает? Дальше в логе про pppd больше ничего не сказано...


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 10, 2012 11:51
Не в сети
Сотрудник D-LINK
Сотрудник D-LINK

Зарегистрирован: Ср окт 17, 2012 10:02
Сообщений: 2921
Откуда: D-Link, Ryazan
Больше интересует конец лога, но это после. Покажите, пожалуйста, настройки.

_________________
Полезные настройки


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 10, 2012 11:56
Не в сети

Зарегистрирован: Пн дек 10, 2012 09:16
Сообщений: 10

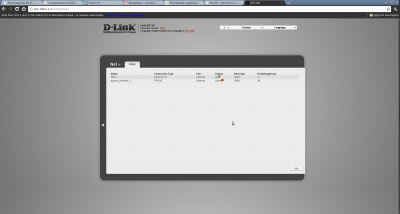

Вот настройки пппое


Вложения:
Снимок-DIR-300 - Chromium-2.png
Снимок-DIR-300 - Chromium-2.png [ 181.12 KiB | Просмотров: 6064 ]
Снимок-DIR-300 - Chromium-1.png
Снимок-DIR-300 - Chromium-1.png [ 201.38 KiB | Просмотров: 6064 ]
Снимок-DIR-300 - Chromium.png
Снимок-DIR-300 - Chromium.png [ 196.7 KiB | Просмотров: 6064 ]
Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 10, 2012 11:57
Не в сети

Зарегистрирован: Пн дек 10, 2012 09:16
Сообщений: 10
кстати я пробовал ipoe соединение, которое там было по умолчанию, удалять... Проблема всеравно остается...


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Вт дек 11, 2012 09:29
Не в сети
Сотрудник D-LINK
Сотрудник D-LINK

Зарегистрирован: Ср окт 17, 2012 10:02
Сообщений: 2921
Откуда: D-Link, Ryazan
Сейчас ваш вопрос на рассмотрении у программистов. Подождите немного.

_________________
Полезные настройки


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Вт дек 11, 2012 11:10
Не в сети

Зарегистрирован: Чт мар 27, 2008 12:04
Сообщений: 10
Вы уточните сколько еще ждать, так же купили партию этой версии (черт дернул), крайне не стабильно работают , 98% возврат то не работает мултикаст по wifi, пере прошили но теперь не подключается после перезагрузки!


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Вт дек 11, 2012 14:01
Не в сети
Сотрудник D-LINK
Сотрудник D-LINK

Зарегистрирован: Ср окт 17, 2012 10:02
Сообщений: 2921
Откуда: D-Link, Ryazan
На нашем тестовом устройстве это не подтверждается, что, в свою очередь, усложняет поиск проблемы. Подождите немного.

_________________
Полезные настройки


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Чт дек 13, 2012 17:11
Не в сети

Зарегистрирован: Пн дек 10, 2012 09:16
Сообщений: 10
Ну так что там с ПППоЕ? а то мы уже собираемся всю партию назад вернуть...=)


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пт дек 14, 2012 08:49
Не в сети
Сотрудник D-LINK
Сотрудник D-LINK

Зарегистрирован: Ср окт 17, 2012 10:02
Сообщений: 2921
Откуда: D-Link, Ryazan
Пришла новая прошивка. После тестирования она появится на FTP.

_________________
Полезные настройки


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 24, 2012 11:20
Не в сети

Зарегистрирован: Чт мар 27, 2008 12:04
Сообщений: 10
Прошивка 1.7 появилась а толку все в итоге к сожалению также, автоматически не конектиться к PPPoE, это уже на издевательство похоже.


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 24, 2012 11:22
Не в сети
Сотрудник D-LINK
Сотрудник D-LINK

Зарегистрирован: Ср окт 17, 2012 10:02
Сообщений: 2921
Откуда: D-Link, Ryazan
griffff писал(а):
Прошивка 1.7 появилась а толку все в итоге к сожалению также, автоматически не конектиться к PPPoE, это уже на издевательство похоже.

Вы сброс настроек после прошивки делали?

_________________
Полезные настройки


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: PPPoE DIR-300/A/C1
СообщениеДобавлено: Пн дек 24, 2012 12:03
Не в сети

Зарегистрирован: Чт мар 27, 2008 12:04
Сообщений: 10
Да сбрасывали !!!! Все тоже самое, после перезагрузки ни поднимает pppoe...
После перезагрузки создается процесс pppd call eth1_2 , но в ifconrfig нет интерфейса ppp нет !
Если отстрелить этот процесс и запустить заново в ("pppd call eth1_2" ) , все стартует .


Model:DIR-300
Firmware version: 1.0.7
Language: English (Maybe your language is Русский)

System
Language



Net
Click'n'Connect

Wi-Fi
Wireless network settings wizard

Firewall
Virtual server settings wizard

IP-tv
IPTV settings wizard
Device information
Model:
DIR-300
Firmware version:
1.0.7
Build time:
Thu Dec 13 14:31:16 MSK 2012
Vendor:
D-Link Russia
Support:
support@dlink.ru
Summary:
Root filesystem image for DIR-300
Web revision:
9ed6b65bcea42a7ec57831ee387dc75ae8edb019
Network information
LAN IP:
192.168.0.1
WAN connection status:
Disconnected;WAN type: pppoe; Unknown error.
LAN MAC:
00:07:26:41:00:11
SSID:
DIR-300




System »
Configuration
Log
Jan 1 00:00:05 kernel: PID hash table entries: 128 (order: 7, 512 bytes)
Jan 1 00:00:05 kernel: Mount-cache hash table entries: 512
Jan 1 00:00:05 kernel: bio: create slab at 0
Jan 1 00:00:05 resident: init lan
Jan 1 00:00:05 kernel: Realtek GPIO Driver for Flash Reload Default
Jan 1 00:00:05 kernel: RTL8192C/RTL8188C driver version 1.4 (2010-12-22)
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: 96C - 40MHz Clock Source
Jan 1 00:00:05 kernel: vendor_deivce_id=819110ec
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>INSIDE rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: =====>>EXIT rtl8192cd_init_one <<=====
Jan 1 00:00:05 kernel: Probing RTL8186 10/100 NIC-kenel stack size order[3]...
Jan 1 00:00:05 kernel: chip name: 8196C, chip revid: 4
Jan 1 00:00:05 kernel: Set 8196C PHY Patch OK
Jan 1 00:00:05 kernel: NOT YET
Jan 1 00:00:05 kernel: Set threshould idx 0
Jan 1 00:00:05 kernel: eth0 added. vid=9 Member port 0x1...
Jan 1 00:00:05 kernel: eth1 added. vid=8 Member port 0x10...
Jan 1 00:00:05 kernel: eth2 added. vid=9 Member port 0x2...
Jan 1 00:00:05 kernel: eth3 added. vid=9 Member port 0x4...
Jan 1 00:00:05 kernel: eth4 added. vid=9 Member port 0x8...
Jan 1 00:00:05 kernel: eth5 added. vid=9 Member port 0x0...
Jan 1 00:00:05 kernel: [peth0] added, mapping to [eth1]...
Jan 1 00:00:05 kernel: SPI INIT
Jan 1 00:00:05 kernel: flash device: 0x400000 at 0xbfe00000
Jan 1 00:00:05 kernel: ========================= Registed SPI Flash Model =========================
Jan 1 00:00:05 kernel: |No chipID Sft chipSize blkSize secSize pageSize sdCk opCk chipName |
Jan 1 00:00:05 kernel: | 0 ef4016h 0h 400000h 10000h 1000h 100h 104 0 W25Q32|
Jan 1 00:00:05 kernel: ============================================================================
Jan 1 00:00:05 kernel: flash_bank_1: squashfs filesystem found at offset 0x120000
Jan 1 00:00:05 kernel: Creating 7 MTD partitions on "flash_bank_1":
Jan 1 00:00:05 kernel: 0x000000000000-0x000000010000 : "boot"
Jan 1 00:00:05 kernel: 0x000000010000-0x000000020000 : "MAC"
Jan 1 00:00:05 resident: start ipoe
Jan 1 00:00:05 start_ip: begin (br0 -> br0)
Jan 1 00:00:05 resident: start ipoe (v716779564) on br0
Jan 1 00:00:05 kernel: 0x000000020000-0x000000030000 : "config"
Jan 1 00:00:05 kernel: 0x000000030000-0x000000130000 : "kernel"
Jan 1 00:00:05 kernel: 0x000000120000-0x000000400000 : "rootfs"
Jan 1 00:00:05 kernel: 0x000000030000-0x000000400000 : "Linux"
Jan 1 00:00:05 kernel: 0x000000000000-0x000000400000 : "ALL"
Jan 1 00:00:05 kernel: Netfilter messages via NETLINK v0.30.
Jan 1 00:00:05 kernel: nf_conntrack version 0.5.0 (512 buckets, 2048 max)
Jan 1 00:00:05 kernel: ctnetlink v0.93: registering with nfnetlink.
Jan 1 00:00:05 kernel: Netlink[Kernel] create socket for igmp ok.
Jan 1 00:00:05 kernel: VFS: Mounted root (squashfs filesystem) readonly on device 31:4.
Jan 1 00:00:05 kernel: -------> Set MIB from /etc/Wireless/RTL8192CD.dat
Jan 1 00:00:05 kernel: <------- Set MIB from /etc/Wireless/RTL8192CD.dat Success
Jan 1 00:00:05 kernel: [PHY_ConfigMACWithParaFile][MACPHY_REG_92C]
Jan 1 00:00:05 kernel: ===> Load_92C_Firmware
Jan 1 00:00:05 kernel: <=== Load_92C_Firmware
Jan 1 00:00:06 update_ipfilters: error in params
Jan 1 00:00:06 resident: init wan
Jan 1 00:00:06 kernel: Wan link is down
Jan 1 00:00:06 resident: start ipoe
Jan 1 00:00:06 start_ip: begin (eth1 -> eth1_1)
Jan 1 00:00:06 resident: start ipoe (v718040968) on eth1
Jan 1 00:00:06 resident: start pppd on eth1_2
Jan 1 00:00:06 resident: stop pppd on eth1_2
Jan 1 00:00:07 resident: set lock on eth1_2, with "/var/lock/eth1_2.lock"
Jan 1 00:00:07 resident: stopped link(contype:ppp, iface:eth1_2)
Jan 1 00:00:07 event: send event "ipoe down"
Jan 1 00:00:07 pppd[154]: pppd 2.4.4 started by admin, uid 0
Jan 1 00:00:08 kernel: Wan link is up!
Jan 1 00:00:10 event: send event "ipoe up"
Jan 1 00:00:10 kernel: -------> Set MIB from /etc/Wireless/RTL8192CD.dat
Jan 1 00:00:10 kernel: <------- Set MIB from /etc/Wireless/RTL8192CD.dat Success
Jan 1 00:00:10 kernel: [PHY_ConfigMACWithParaFile][MACPHY_REG_92C]
Jan 1 00:00:10 kernel: ===> Load_92C_Firmware
Jan 1 00:00:10 kernel: <=== Load_92C_Firmware
Jan 1 00:00:10 telnet-start: begin...
Jan 1 00:00:10 telnet-start: running on 23 port
Jan 1 00:00:10 telnet-start: succes!
Jan 1 00:00:10 resident: Out init_device
Jan 1 00:00:10 kernel: GPIO resident_pid=15
Jan 1 00:00:10 resident: record = action:up;iface:br0;contag:0;ipaddr:192.168.0.1;netmask:255.255.255.0;
Jan 1 00:00:10 resident: phys_iface br0
Jan 1 00:00:10 test: ip_type = (null)
Jan 1 00:00:10 resident: resident_ipoe_handler - Set default type: ipv4
Jan 1 00:00:10 resident: phys_iface
Jan 1 00:00:10 resident: resident_ipoe_handler - 1
Jan 1 00:00:10 resident: resident_ipoe_handler - 3, name: br0
Jan 1 00:00:10 resident: resident_ipoe_handler - l2:br0, l3:br0, tun:, ip_type:0
Jan 1 00:00:10 resident: resident_ipoe_handler - ipv4
Jan 1 00:00:10 resident: start ip_is_up on iface br0
Jan 1 00:00:10 resident: ip_is_up for link br0
Jan 1 00:00:11 resident: start dhcp+dns on br0
Jan 1 00:00:11 upnp: start - begin
Jan 1 00:00:11 resident: record = action:down;iface:eth1;contag:1;
Jan 1 00:00:11 resident: phys_iface eth1
Jan 1 00:00:11 test: ip_type = (null)
Jan 1 00:00:12 resident: resident_ipoe_handler - Set default type: ipv4
Jan 1 00:00:12 resident: phys_iface
Jan 1 00:00:12 resident: resident_ipoe_handler - 2
Jan 1 00:00:12 resident: resident_ipoe_handler - 3, name: eth1_1
Jan 1 00:00:12 miniupnpd[200]: HTTP listening on port 34204
Jan 1 00:00:12 miniupnpd[200]: Listening for NAT-PMP traffic on port 5351
Jan 1 00:00:12 resident: resident_ipoe_handler - l2:eth1, l3:eth1_1, tun:, ip_type:0
Jan 1 00:00:12 resident: ip_is_down on eth1_1
Jan 1 00:00:12 resident: record = action:up;iface:eth1;contag:1;ipaddr:192.168.160.57 ;netmask:255.255.252.0 ;dns1:195.208.14.2;dns2:195.208.8.17;
Jan 1 00:00:12 resident: phys_iface eth1
Jan 1 00:00:12 test: ip_type = (null)
Jan 1 00:00:12 resident: resident_ipoe_handler - Set default type: ipv4
Jan 1 00:00:12 resident: phys_iface
Jan 1 00:00:12 resident: resident_ipoe_handler - 2
Jan 1 00:00:12 resident: resident_ipoe_handler - 3, name: eth1_1
Jan 1 00:00:12 resident: resident_ipoe_handler - l2:eth1, l3:eth1_1, tun:, ip_type:0
Jan 1 00:00:12 resident: resident_ipoe_handler - ipv4
Jan 1 00:00:12 resident: start ip_is_up on iface eth1_1
Jan 1 00:00:12 resident: ip_is_up for link eth1_1
Jan 1 00:00:12 set_dhcp_routes: set routes for iface eth1
Jan 1 00:00:12 resident: update dns
Jan 1 00:00:12 resident: update rip
Jan 1 00:00:12 resident: update igmpx
Jan 1 00:00:12 resident: stop igmpx
Jan 1 00:00:13 iface: this is eth1
Jan 1 00:00:13 resident: igmpx eth1
Jan 1 00:00:13 resident: update igmpx compiled
Jan 1 00:00:13 syslog: kernel multicast version is 305 (v3.05 ?)
Jan 1 00:00:21 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:23 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:23 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:23 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:24 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:27 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:30 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:33 miniupnpd[200]: Can't find in which sub network the client is
Jan 1 00:00:40 syslog: added new route 239.255.255.250: 192.168.160.57 -> 192.168.0.1


Вернуться наверх
 Профиль

Показать сообщения за:  Сортировать по:
Начать новую тему Ответить на тему  [ Сообщений: 42 ]  На страницу 1, 2, 3  След.

Часовой пояс: UTC + 3 часа


Кто сейчас на форуме

Сейчас этот форум просматривают: Google [Bot] и гости: 42


Вы не можете начинать темы
Вы не можете отвечать на сообщения
Вы не можете редактировать свои сообщения
Вы не можете удалять свои сообщения
Вы не можете добавлять вложения

Найти:
Перейти:
Создано на основе phpBB® Forum Software © phpBB Group
Русская поддержка phpBB
