DES-3200-52:admin#show config current_config
Command: show config current_config

#-------------------------------------------------------------------------------
# DES-3200-52 Fast Ethernet Switch
# Configuration
#
# Firmware: Build 4.37.B009
# Copyright(C) 2012 D-Link Corporation. All rights reserved.
#-------------------------------------------------------------------------------


# DEVICE

config temperature threshold high 79
config temperature threshold low 11
config temperature trap state enable
config temperature log state enable

# BASIC

# ACCOUNT LIST
create account admin admin
admin
admin

# ACCOUNT END
# PASSWORD ENCRYPTION
disable password encryption
config serial_port baud_rate 115200 auto_logout 10_minutes
enable web 80
disable clipaging
config terminal width 80
config terminal_line default
disable command logging
enable password_recovery

# DEBUG

debug config state enable
debug config error_reboot enable

# STORM

config traffic control 1 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 2 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 3 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 4 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 5 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 6 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 7 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 8 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 9 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 10 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 11 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 12 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 13 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 14 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 15 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 16 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 17 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 18 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 19 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 20 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 21 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 22 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 23 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 24 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 25 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 26 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 27 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 28 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 29 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 30 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 31 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 32 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 33 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 34 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 35 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 36 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 37 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 38 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 39 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 40 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 41 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 42 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 43 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 44 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 45 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 46 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 47 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 48 broadcast enable multicast disable unicast disable action drop threshold 64 countdown 0 time_interval 5
config traffic control 49 broadcast disable multicast disable unicast disable action drop threshold 131072 countdown 0 time_interval 5
config traffic control 50 broadcast disable multicast disable unicast disable action drop threshold 131072 countdown 0 time_interval 5
config traffic control 51 broadcast disable multicast disable unicast disable action drop threshold 131072 countdown 0 time_interval 5
config traffic control 52 broadcast disable multicast disable unicast disable action drop threshold 131072 countdown 0 time_interval 5
config traffic control auto_recover_time 0
config traffic trap none
config traffic control log state enable

# LOOP_DETECT

disable loopdetect
config loopdetect recover_timer 60 interval 10 mode port-based
config loopdetect log state enable
config loopdetect ports 1 state disable
config loopdetect ports 2 state disable
config loopdetect ports 3 state disable
config loopdetect ports 4 state disable
config loopdetect ports 5 state disable
config loopdetect ports 6 state disable
config loopdetect ports 7 state disable
config loopdetect ports 8 state disable
config loopdetect ports 9 state disable
config loopdetect ports 10 state disable
config loopdetect ports 11 state disable
config loopdetect ports 12 state disable
config loopdetect ports 13 state disable
config loopdetect ports 14 state disable
config loopdetect ports 15 state disable
config loopdetect ports 16 state disable
config loopdetect ports 17 state disable
config loopdetect ports 18 state disable
config loopdetect ports 19 state disable
config loopdetect ports 20 state disable
config loopdetect ports 21 state disable
config loopdetect ports 22 state disable
config loopdetect ports 23 state disable
config loopdetect ports 24 state disable
config loopdetect ports 25 state disable
config loopdetect ports 26 state disable
config loopdetect ports 27 state disable
config loopdetect ports 28 state disable
config loopdetect ports 29 state disable
config loopdetect ports 30 state disable
config loopdetect ports 31 state disable
config loopdetect ports 32 state disable
config loopdetect ports 33 state disable
config loopdetect ports 34 state disable
config loopdetect ports 35 state disable
config loopdetect ports 36 state disable
config loopdetect ports 37 state disable
config loopdetect ports 38 state disable
config loopdetect ports 39 state disable
config loopdetect ports 40 state disable
config loopdetect ports 41 state disable
config loopdetect ports 42 state disable
config loopdetect ports 43 state disable
config loopdetect ports 44 state disable
config loopdetect ports 45 state disable
config loopdetect ports 46 state disable
config loopdetect ports 47 state disable
config loopdetect ports 48 state disable
config loopdetect ports 49 state disable
config loopdetect ports 50 state disable
config loopdetect ports 51 state disable
config loopdetect ports 52 state disable
config loopdetect trap none

# GM

disable sim
config sim candidate
config sim dp_interval 30
config sim hold_time 100

# GM_H


# MIRROR

config mirror port 47 add source ports 50 rx
config mirror port 47 add source ports 50 tx
enable mirror

# QOS

config 802.1p user_priority 0 2
config 802.1p user_priority 1 0
config 802.1p user_priority 2 1
config 802.1p user_priority 3 3
config 802.1p user_priority 4 4
config 802.1p user_priority 5 5
config 802.1p user_priority 6 6
config 802.1p user_priority 7 7
config 802.1p default_priority 1-52 0
config bandwidth_control 1-52 rx_rate no_limit tx_rate no_limit
config per_queue bandwidth_control ports 1-52 0 min_rate no_limit max_rate no_limit
config per_queue bandwidth_control ports 1-52 1 min_rate no_limit max_rate no_limit
config per_queue bandwidth_control ports 1-52 2 min_rate no_limit max_rate no_limit
config per_queue bandwidth_control ports 1-52 3 min_rate no_limit max_rate no_limit
config per_queue bandwidth_control ports 1-52 4 min_rate no_limit max_rate no_limit
config per_queue bandwidth_control ports 1-52 5 min_rate no_limit max_rate no_limit
config per_queue bandwidth_control ports 1-52 6 min_rate no_limit max_rate no_limit
config per_queue bandwidth_control ports 1-52 7 min_rate no_limit max_rate no_limit
config scheduling_mechanism ports 1-52 strict
config scheduling ports 1-52 0 weight 1
config scheduling ports 1-52 1 weight 2
config scheduling ports 1-52 2 weight 3
config scheduling ports 1-52 3 weight 4
config scheduling ports 1-52 4 weight 5
config scheduling ports 1-52 5 weight 6
config scheduling ports 1-52 6 weight 7
config scheduling ports 1-52 7 weight 8

# SYSLOG

config log_save_timing on_demand
disable syslog
config system_severity trap information
config system_severity log information

# TRAF-SEGMENTATION

config traffic_segmentation 1-52 forward_list all

# SSL

disable ssl
enable ssl ciphersuite RSA_with_RC4_128_MD5
enable ssl ciphersuite RSA_with_3DES_EDE_CBC_SHA
enable ssl ciphersuite DHE_DSS_with_3DES_EDE_CBC_SHA
enable ssl ciphersuite RSA_EXPORT_with_RC4_40_MD5
config ssl cachetimeout 600

# PORT

enable jumbo_frame
config ports 1-45,47-48 speed auto flow_control disable learning enable state enable mdix auto
config ports 46 speed auto flow_control disable learning enable state disable mdix auto
config ports 49-50 medium_type copper speed auto flow_control disable learning enable state enable mdix auto
config ports 49-50 medium_type fiber speed auto flow_control disable learning enable state enable
config ports 51-52 speed auto flow_control disable learning enable state enable

# SFLOW

disable sflow

# OAM

config ethernet_oam ports 1-52 mode active
config ethernet_oam ports 1-52 state disable
config duld ports 1-52 state disable
config duld ports 1-52 discovery_time 5
config duld ports 1-52 mode normal
config ethernet_oam ports 1-52 link_monitor error_symbol threshold 1 window 1000 notify_state enable
config ethernet_oam ports 1-52 link_monitor error_frame threshold 1 window 1000 notify_state enable
config ethernet_oam ports 1-52 link_monitor error_frame_period threshold 1 window 1488100 notify_state enable
config ethernet_oam ports 1-52 link_monitor error_frame_seconds threshold 1 window 60000 notify_state enable
config ethernet_oam ports 1-52 critical_link_event dying_gasp notify_state enable
config ethernet_oam ports 1-52 critical_link_event critical_event notify_state enable
config ethernet_oam ports 1-52 received_remote_loopback ignore

# DDM

config ddm trap disable
config ddm log enable
config ddm ports 49-52 state enable shutdown none

# MANAGEMENT

enable snmp traps
enable snmp authenticate_traps
enable snmp linkchange_traps
disable snmp
config snmp linkchange_traps ports 1-52 enable

# TRAP

config snmp coldstart_traps enable
config snmp warmstart_traps enable
config rmon trap rising_alarm enable
config rmon trap falling_alarm enable

# TR


# IGMP_MULTICAST_VLAN

disable igmp_snooping multicast_vlan
config igmp_snooping multicast_vlan forward_unmatched disable

# VLAN

enable pvid auto_assign
config vlan default delete 1-52
config vlan default advertisement enable
create vlan local_mgmt tag 69
config vlan local_mgmt add tagged 49-50
config vlan local_mgmt add untagged 51-52 advertisement disable

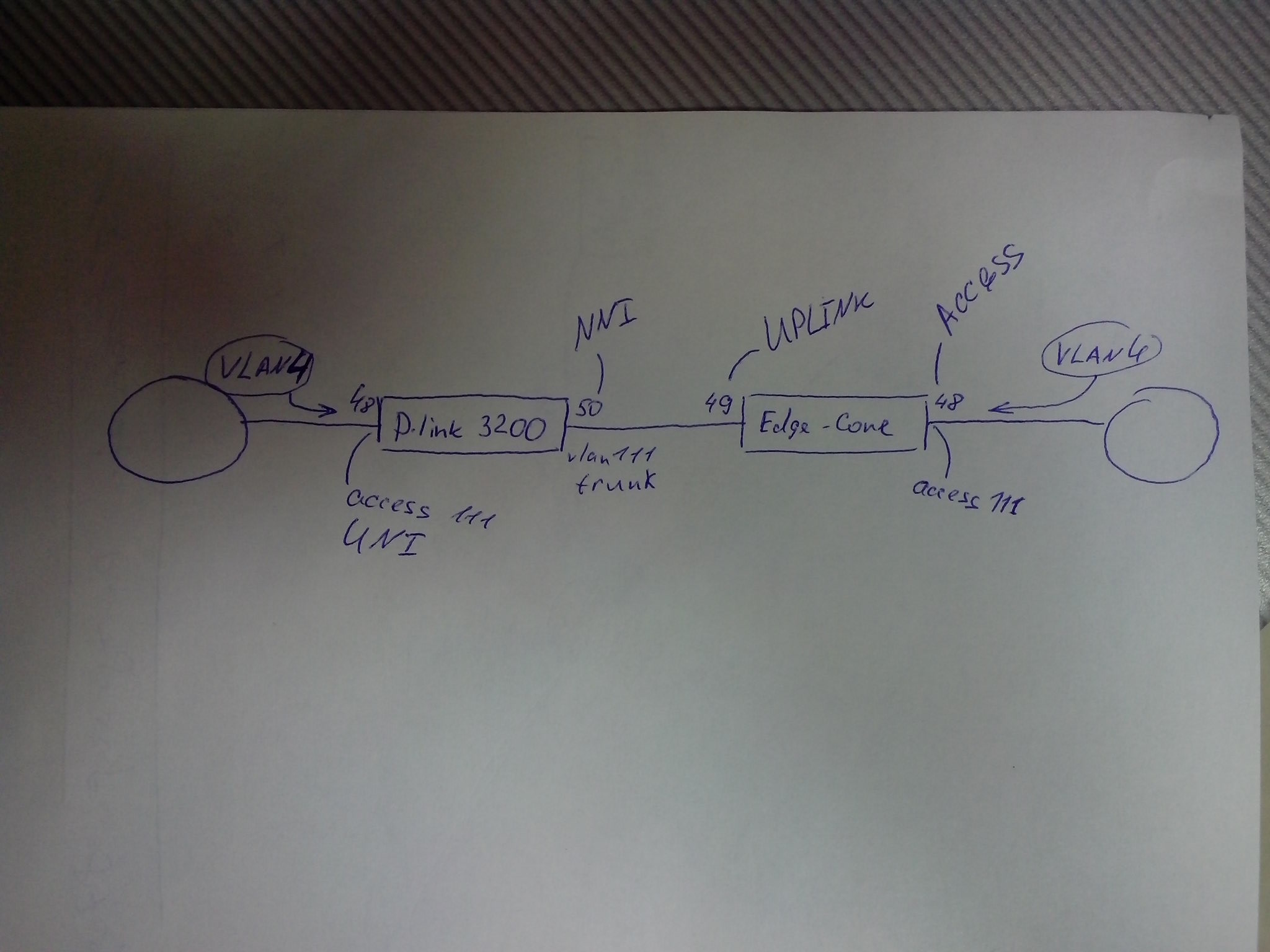

create vlan qnq tag 100
config vlan qnq add tagged 3
config vlan qnq add untagged 2 advertisement disable
create vlan office tag 102
config vlan office add tagged 49-50
config vlan office add untagged 1,4-48 advertisement disable
create vlan 111 tag 111
config vlan 111 add tagged 49-50
config vlan 111 add untagged 46-48 advertisement disable
enable qinq
disable gvrp
config gvrp nni_bpdu_addr dot1ad
disable vlan_trunk
config port_vlan 1,4-45 gvrp_state disable ingress_checking disable acceptable_frame admit_all pvid 102
config port_vlan 2 gvrp_state disable ingress_checking disable acceptable_frame admit_all pvid 100
config port_vlan 3 gvrp_state disable ingress_checking disable acceptable_frame tagged_only pvid 100
config port_vlan 46-48 gvrp_state disable ingress_checking disable acceptable_frame admit_all pvid 111
config port_vlan 49 gvrp_state disable ingress_checking enable acceptable_frame tagged_only pvid 1
config port_vlan 50 gvrp_state disable ingress_checking enable acceptable_frame admit_all pvid 111
config port_vlan 51-52 gvrp_state disable ingress_checking enable acceptable_frame tagged_only pvid 69

# PORT_SECURITY

config port_security system max_learning_addr no_limit
disable port_security trap_log
config port_security ports 1-52 admin_state disable max_learning_addr 32 lock_address_mode deleteonreset

# ACL


#CPU Interface Filter

disable cpu_interface_filtering

# PROTOCOL_VLAN


# QINQ

config qinq inner_tpid 0x8100
config qinq ports 1,3-8,10-45,49-52 role nni missdrop disable outer_tpid 0x8100
config qinq ports 1-52 add_inner_tag disable
config qinq ports 2,9,46-48 role uni missdrop disable outer_tpid 0x8100

# 8021X

disable 802.1x
config 802.1x auth_mode port_based
config 802.1x auth_protocol radius_eap
config 802.1x fwd_pdu system disable
config 802.1x max_users no_limit
config 802.1x authorization attributes radius enable
config 802.1x capability ports 1-52 none
config 802.1x auth_parameter ports 1-52 direction both port_control auto quiet_period 60 tx_period 30 supp_timeout 30 server_timeout 30 max_req 2 reauth_period 3600 enable_reauth disable
config 802.1x auth_parameter ports 1-52 max_users 16

# GUEST_VLAN


# NLB


# FDB

config fdb aging_time 300
config block tx ports 1-52 unicast disable

# ADDRBIND

config address_binding dhcp_snoop max_entry ports 1 limit no_limit
config address_binding dhcp_snoop max_entry ports 2 limit no_limit
config address_binding dhcp_snoop max_entry ports 3 limit no_limit
config address_binding dhcp_snoop max_entry ports 4 limit no_limit
config address_binding dhcp_snoop max_entry ports 5 limit no_limit
config address_binding dhcp_snoop max_entry ports 6 limit no_limit
config address_binding dhcp_snoop max_entry ports 7 limit no_limit
config address_binding dhcp_snoop max_entry ports 8 limit no_limit
config address_binding dhcp_snoop max_entry ports 9 limit no_limit
config address_binding dhcp_snoop max_entry ports 10 limit no_limit
config address_binding dhcp_snoop max_entry ports 11 limit no_limit
config address_binding dhcp_snoop max_entry ports 12 limit no_limit
config address_binding dhcp_snoop max_entry ports 13 limit no_limit
config address_binding dhcp_snoop max_entry ports 14 limit no_limit
config address_binding dhcp_snoop max_entry ports 15 limit no_limit
config address_binding dhcp_snoop max_entry ports 16 limit no_limit
config address_binding dhcp_snoop max_entry ports 17 limit no_limit
config address_binding dhcp_snoop max_entry ports 18 limit no_limit
config address_binding dhcp_snoop max_entry ports 19 limit no_limit
config address_binding dhcp_snoop max_entry ports 20 limit no_limit
config address_binding dhcp_snoop max_entry ports 21 limit no_limit
config address_binding dhcp_snoop max_entry ports 22 limit no_limit
config address_binding dhcp_snoop max_entry ports 23 limit no_limit
config address_binding dhcp_snoop max_entry ports 24 limit no_limit
config address_binding dhcp_snoop max_entry ports 25 limit no_limit
config address_binding dhcp_snoop max_entry ports 26 limit no_limit
config address_binding dhcp_snoop max_entry ports 27 limit no_limit
config address_binding dhcp_snoop max_entry ports 28 limit no_limit
config address_binding dhcp_snoop max_entry ports 29 limit no_limit
config address_binding dhcp_snoop max_entry ports 30 limit no_limit
config address_binding dhcp_snoop max_entry ports 31 limit no_limit
config address_binding dhcp_snoop max_entry ports 32 limit no_limit
config address_binding dhcp_snoop max_entry ports 33 limit no_limit
config address_binding dhcp_snoop max_entry ports 34 limit no_limit
config address_binding dhcp_snoop max_entry ports 35 limit no_limit
config address_binding dhcp_snoop max_entry ports 36 limit no_limit
config address_binding dhcp_snoop max_entry ports 37 limit no_limit
config address_binding dhcp_snoop max_entry ports 38 limit no_limit
config address_binding dhcp_snoop max_entry ports 39 limit no_limit
config address_binding dhcp_snoop max_entry ports 40 limit no_limit
config address_binding dhcp_snoop max_entry ports 41 limit no_limit
config address_binding dhcp_snoop max_entry ports 42 limit no_limit
config address_binding dhcp_snoop max_entry ports 43 limit no_limit
config address_binding dhcp_snoop max_entry ports 44 limit no_limit
config address_binding dhcp_snoop max_entry ports 45 limit no_limit
config address_binding dhcp_snoop max_entry ports 46 limit no_limit
config address_binding dhcp_snoop max_entry ports 47 limit no_limit
config address_binding dhcp_snoop max_entry ports 48 limit no_limit
config address_binding dhcp_snoop max_entry ports 49 limit no_limit
config address_binding dhcp_snoop max_entry ports 50 limit no_limit
config address_binding dhcp_snoop max_entry ports 51 limit no_limit
config address_binding dhcp_snoop max_entry ports 52 limit no_limit
config address_binding ip_mac ports 1-48 ip_inspection enable
config address_binding ip_mac ports 1-48 allow_zeroip enable
disable address_binding dhcp_snoop
disable address_binding trap_log
enable address_binding roaming
disable address_binding dhcp_snoop ipv6
disable address_binding nd_snoop
config address_binding dhcp_snoop max_entry ports 1-52 limit no_limit ipv6
config address_binding nd_snoop ports 1-52 max_entry no_limit

# NetBiosFilter

config filter netbios all state disable
config filter extensive_netbios all state disable

# DoS

config dos_prevention dos_type land_attack action drop state disable
config dos_prevention dos_type blat_attack action drop state disable
config dos_prevention dos_type tcp_null_scan action drop state disable
config dos_prevention dos_type tcp_xmasscan action drop state disable
config dos_prevention dos_type tcp_synfin action drop state disable
config dos_prevention dos_type tcp_syn_srcport_less_1024 action drop state disable
config dos_prevention dos_type ping_death_attack action drop state disable
config dos_prevention dos_type tcp_tiny_frag_attack action drop state disable
config dos_prevention trap disable
config dos_prevention log disable

# RADIUS


# DhcpServerScreening

config filter dhcp_server ports all state disable
config filter dhcp_server ports 1-48 state enable
config filter dhcp_server illegal_server_log_suppress_duration 5min
config filter dhcp_server trap_log disable

# PPPoE

config pppoe circuit_id_insertion state disable
config pppoe circuit_id_insertion ports 1-52 state enable circuit_id ip remote_id default

# sRED

config dscp trust all state disable
config 802.1p map all 1p_color 0-7 to green
config dscp map all dscp_color 0-63 to green
config dscp map all dscp_dscp 0 to 0
config dscp map all dscp_dscp 1 to 1
config dscp map all dscp_dscp 2 to 2
config dscp map all dscp_dscp 3 to 3
config dscp map all dscp_dscp 4 to 4
config dscp map all dscp_dscp 5 to 5
config dscp map all dscp_dscp 6 to 6
config dscp map all dscp_dscp 7 to 7
config dscp map all dscp_dscp 8 to 8
config dscp map all dscp_dscp 9 to 9
config dscp map all dscp_dscp 10 to 10
config dscp map all dscp_dscp 11 to 11
config dscp map all dscp_dscp 12 to 12
config dscp map all dscp_dscp 13 to 13
config dscp map all dscp_dscp 14 to 14
config dscp map all dscp_dscp 15 to 15
config dscp map all dscp_dscp 16 to 16
config dscp map all dscp_dscp 17 to 17
config dscp map all dscp_dscp 18 to 18
config dscp map all dscp_dscp 19 to 19
config dscp map all dscp_dscp 20 to 20
config dscp map all dscp_dscp 21 to 21
config dscp map all dscp_dscp 22 to 22
config dscp map all dscp_dscp 23 to 23
config dscp map all dscp_dscp 24 to 24
config dscp map all dscp_dscp 25 to 25
config dscp map all dscp_dscp 26 to 26
config dscp map all dscp_dscp 27 to 27
config dscp map all dscp_dscp 28 to 28
config dscp map all dscp_dscp 29 to 29
config dscp map all dscp_dscp 30 to 30
config dscp map all dscp_dscp 31 to 31
config dscp map all dscp_dscp 32 to 32
config dscp map all dscp_dscp 33 to 33
config dscp map all dscp_dscp 34 to 34
config dscp map all dscp_dscp 35 to 35
config dscp map all dscp_dscp 36 to 36
config dscp map all dscp_dscp 37 to 37
config dscp map all dscp_dscp 38 to 38
config dscp map all dscp_dscp 39 to 39
config dscp map all dscp_dscp 40 to 40
config dscp map all dscp_dscp 41 to 41
config dscp map all dscp_dscp 42 to 42
config dscp map all dscp_dscp 43 to 43
config dscp map all dscp_dscp 44 to 44
config dscp map all dscp_dscp 45 to 45
config dscp map all dscp_dscp 46 to 46
config dscp map all dscp_dscp 47 to 47
config dscp map all dscp_dscp 48 to 48
config dscp map all dscp_dscp 49 to 49
config dscp map all dscp_dscp 50 to 50
config dscp map all dscp_dscp 51 to 51
config dscp map all dscp_dscp 52 to 52
config dscp map all dscp_dscp 53 to 53
config dscp map all dscp_dscp 54 to 54
config dscp map all dscp_dscp 55 to 55
config dscp map all dscp_dscp 56 to 56
config dscp map all dscp_dscp 57 to 57
config dscp map all dscp_dscp 58 to 58
config dscp map all dscp_dscp 59 to 59
config dscp map all dscp_dscp 60 to 60
config dscp map all dscp_dscp 61 to 61
config dscp map all dscp_dscp 62 to 62
config dscp map all dscp_dscp 63 to 63
config dscp map all dscp_priority 0-7 to 0
config dscp map all dscp_priority 8-15 to 1
config dscp map all dscp_priority 16-23 to 2
config dscp map all dscp_priority 24-31 to 3
config dscp map all dscp_priority 32-39 to 4
config dscp map all dscp_priority 40-47 to 5
config dscp map all dscp_priority 48-55 to 6
config dscp map all dscp_priority 56-63 to 7

# ARPSpoofingPrevention


# MAC_ADDRESS_TABLE_NOTIFICATION

disable mac_notification
config mac_notification interval 1 historysize 1
config mac_notification ports 1-52 disable

# STP

config stp version rstp
config stp maxage 20 maxhops 20 forwarddelay 15 txholdcount 6 fbpdu disable hellotime 2 nni_bpdu_addr dot1ad
config stp priority 32768 instance_id 0
config stp ports 1-52 externalCost auto edge auto p2p auto state enable restricted_role false restricted_tcn false
config stp mst_ports 1-52 instance_id 0 internalCost auto priority 128
config stp ports 1-52 fbpdu disable
config stp loop_guard ports 1-52 state disable
config stp mst_config_id name AC:F1:DF:BF:2C:08 revision_level 0
disable stp

# L2PT

disable l2protocol_tunnel
config l2protocol_tunnel ports all type none
config l2protocol_tunnel tunneled_protocol stp default
config l2protocol_tunnel tunneled_protocol gvrp default
config l2protocol_tunnel tunneled_protocol 01-00-0C-CC-CC-CC default
config l2protocol_tunnel tunneled_protocol 01-00-0C-CC-CC-CD default
config l2protocol_tunnel tunneled_protocol lldp default
config l2protocol_tunnel tunneled_protocol lacp default
config l2protocol_tunnel tunneled_protocol oam default

# BPDU_PROTECTION

disable bpdu_protection
config bpdu_protection recovery_timer 60
config bpdu_protection trap none
config bpdu_protection log both
config bpdu_protection ports 1-52 mode shutdown

# SAFEGUARD_ENGINE

config safeguard_engine state disable utilization rising 30 falling 20 trap_log disable mode fuzzy

# BANNER_PROMP

config command_prompt default
config greeting_message default

# SSH

config ssh algorithm 3DES enable
config ssh algorithm AES128 enable
config ssh algorithm AES192 enable
config ssh algorithm AES256 enable
config ssh algorithm arcfour enable
config ssh algorithm blowfish enable
config ssh algorithm cast128 enable
config ssh algorithm twofish128 enable
config ssh algorithm twofish192 enable
config ssh algorithm twofish256 enable
config ssh algorithm MD5 enable
config ssh algorithm SHA1 enable
config ssh algorithm RSA enable
config ssh algorithm DSA enable
config ssh authmode password enable
config ssh authmode publickey enable
config ssh authmode hostbased enable
config ssh server maxsession 8
config ssh server contimeout 120
config ssh server authfail 2
config ssh server rekey never
config ssh server port 22
config ssh user admin authmode password
config ssh publickey bypass_login_screen state disable
disable ssh

# TELNETS

enable telnet 23

# BCPING


# SMTP

disable smtp

# SNTP

disable sntp
config time_zone operator + hour 0 min 0
config sntp primary 0.0.0.0 secondary 0.0.0.0 poll-interval 720
config dst disable

# MULTICAST_FILTER

config control_pkt ipv4 igmp replace priority none dscp none
config control_pkt ipv4 vrrp replace priority none dscp none
config control_pkt ipv4 rip replace priority none dscp none
config control_pkt ipv4 pim replace priority none dscp none
config control_pkt ipv4 dvmrp replace priority none dscp none
config control_pkt ipv4 ospf replace priority none dscp none
config control_pkt ipv6 mld replace priority none dscp none
config control_pkt ipv6 pim replace priority none dscp none
config control_pkt ipv6 ospf replace priority none dscp none
config control_pkt ipv6 ripng replace priority none dscp none
config control_pkt ipv6 nd replace priority none dscp none

# LACP

config link_aggregation algorithm mac_source
config lacp_port 1-52 mode passive

# IP

config ipif System ipaddress 10.230.84.212/24
config ipif System vlan office
config ipif System dhcp_option12 state disable
disable autoconfig
config autoconfig timeout 50

# SNMPv3

delete snmp community public
delete snmp community private
delete snmp user initial
delete snmp group initial
delete snmp view restricted all
delete snmp view CommunityView all
config snmp engineID 800000ab03acf1dfbf2c08
create snmp view restricted 1.3.6.1.2.1.1 view_type included
create snmp view restricted 1.3.6.1.2.1.11 view_type included
create snmp view restricted 1.3.6.1.6.3.10.2.1 view_type included
create snmp view restricted 1.3.6.1.6.3.11.2.1 view_type included
create snmp view restricted 1.3.6.1.6.3.15.1.1 view_type included
create snmp view CommunityView 1 view_type included
create snmp view CommunityView 1.3.6.1.6.3 view_type excluded
create snmp view CommunityView 1.3.6.1.6.3.1 view_type included
create snmp group public v1 read_view CommunityView notify_view CommunityView
create snmp group public v2c read_view CommunityView notify_view CommunityView
create snmp group initial v3 noauth_nopriv read_view restricted notify_view restricted
create snmp group private v1 read_view CommunityView write_view CommunityView notify_view CommunityView
create snmp group private v2c read_view CommunityView write_view CommunityView notify_view CommunityView
create snmp community private view CommunityView read_write
create snmp community public view CommunityView read_only
create snmp user initial initial
disable community_encryption

# VOICEVLAN


# ERPS

disable erps
config erps log disable
config erps trap disable

# CFM

disable cfm

# LLDP

disable lldp
config lldp message_tx_interval 30
config lldp tx_delay 2
config lldp message_tx_hold_multiplier 4
config lldp reinit_delay 2
config lldp notification_interval 5
config lldp ports 1-52 notification disable
config lldp ports 1-52 admin_status tx_and_rx

# MAC-based_Access_Control

disable mac_based_access_control
config mac_based_access_control authorization attributes radius enable local enable
config mac_based_access_control ports 1-52 state disable
config mac_based_access_control ports 1 max_users 128
config mac_based_access_control ports 1 aging_time 1440
config mac_based_access_control ports 1 block_time 300
config mac_based_access_control ports 2 max_users 128
config mac_based_access_control ports 2 aging_time 1440
config mac_based_access_control ports 2 block_time 300
config mac_based_access_control ports 3 max_users 128
config mac_based_access_control ports 3 aging_time 1440
config mac_based_access_control ports 3 block_time 300
config mac_based_access_control ports 4 max_users 128
config mac_based_access_control ports 4 aging_time 1440
config mac_based_access_control ports 4 block_time 300
config mac_based_access_control ports 5 max_users 128
config mac_based_access_control ports 5 aging_time 1440
config mac_based_access_control ports 5 block_time 300
config mac_based_access_control ports 6 max_users 128
config mac_based_access_control ports 6 aging_time 1440
config mac_based_access_control ports 6 block_time 300
config mac_based_access_control ports 7 max_users 128
config mac_based_access_control ports 7 aging_time 1440
config mac_based_access_control ports 7 block_time 300
config mac_based_access_control ports 8 max_users 128
config mac_based_access_control ports 8 aging_time 1440
config mac_based_access_control ports 8 block_time 300
config mac_based_access_control ports 9 max_users 128
config mac_based_access_control ports 9 aging_time 1440
config mac_based_access_control ports 9 block_time 300
config mac_based_access_control ports 10 max_users 128
config mac_based_access_control ports 10 aging_time 1440
config mac_based_access_control ports 10 block_time 300
config mac_based_access_control ports 11 max_users 128
config mac_based_access_control ports 11 aging_time 1440
config mac_based_access_control ports 11 block_time 300
config mac_based_access_control ports 12 max_users 128
config mac_based_access_control ports 12 aging_time 1440
config mac_based_access_control ports 12 block_time 300
config mac_based_access_control ports 13 max_users 128
config mac_based_access_control ports 13 aging_time 1440
config mac_based_access_control ports 13 block_time 300
config mac_based_access_control ports 14 max_users 128
config mac_based_access_control ports 14 aging_time 1440
config mac_based_access_control ports 14 block_time 300
config mac_based_access_control ports 15 max_users 128
config mac_based_access_control ports 15 aging_time 1440
config mac_based_access_control ports 15 block_time 300
config mac_based_access_control ports 16 max_users 128
config mac_based_access_control ports 16 aging_time 1440
config mac_based_access_control ports 16 block_time 300
config mac_based_access_control ports 17 max_users 128
config mac_based_access_control ports 17 aging_time 1440
config mac_based_access_control ports 17 block_time 300
config mac_based_access_control ports 18 max_users 128
config mac_based_access_control ports 18 aging_time 1440
config mac_based_access_control ports 18 block_time 300
config mac_based_access_control ports 19 max_users 128
config mac_based_access_control ports 19 aging_time 1440
config mac_based_access_control ports 19 block_time 300
config mac_based_access_control ports 20 max_users 128
config mac_based_access_control ports 20 aging_time 1440
config mac_based_access_control ports 20 block_time 300
config mac_based_access_control ports 21 max_users 128
config mac_based_access_control ports 21 aging_time 1440
config mac_based_access_control ports 21 block_time 300
config mac_based_access_control ports 22 max_users 128
config mac_based_access_control ports 22 aging_time 1440
config mac_based_access_control ports 22 block_time 300
config mac_based_access_control ports 23 max_users 128
config mac_based_access_control ports 23 aging_time 1440
config mac_based_access_control ports 23 block_time 300
config mac_based_access_control ports 24 max_users 128
config mac_based_access_control ports 24 aging_time 1440
config mac_based_access_control ports 24 block_time 300
config mac_based_access_control ports 25 max_users 128
config mac_based_access_control ports 25 aging_time 1440
config mac_based_access_control ports 25 block_time 300
config mac_based_access_control ports 26 max_users 128
config mac_based_access_control ports 26 aging_time 1440
config mac_based_access_control ports 26 block_time 300
config mac_based_access_control ports 27 max_users 128
config mac_based_access_control ports 27 aging_time 1440
config mac_based_access_control ports 27 block_time 300
config mac_based_access_control ports 28 max_users 128
config mac_based_access_control ports 28 aging_time 1440
config mac_based_access_control ports 28 block_time 300
config mac_based_access_control ports 29 max_users 128
config mac_based_access_control ports 29 aging_time 1440
config mac_based_access_control ports 29 block_time 300
config mac_based_access_control ports 30 max_users 128
config mac_based_access_control ports 30 aging_time 1440
config mac_based_access_control ports 30 block_time 300
config mac_based_access_control ports 31 max_users 128
config mac_based_access_control ports 31 aging_time 1440
config mac_based_access_control ports 31 block_time 300
config mac_based_access_control ports 32 max_users 128
config mac_based_access_control ports 32 aging_time 1440
config mac_based_access_control ports 32 block_time 300
config mac_based_access_control ports 33 max_users 128
config mac_based_access_control ports 33 aging_time 1440
config mac_based_access_control ports 33 block_time 300
config mac_based_access_control ports 34 max_users 128
config mac_based_access_control ports 34 aging_time 1440
config mac_based_access_control ports 34 block_time 300
config mac_based_access_control ports 35 max_users 128
config mac_based_access_control ports 35 aging_time 1440
config mac_based_access_control ports 35 block_time 300
config mac_based_access_control ports 36 max_users 128
config mac_based_access_control ports 36 aging_time 1440
config mac_based_access_control ports 36 block_time 300
config mac_based_access_control ports 37 max_users 128
config mac_based_access_control ports 37 aging_time 1440
config mac_based_access_control ports 37 block_time 300
config mac_based_access_control ports 38 max_users 128
config mac_based_access_control ports 38 aging_time 1440
config mac_based_access_control ports 38 block_time 300
config mac_based_access_control ports 39 max_users 128
config mac_based_access_control ports 39 aging_time 1440
config mac_based_access_control ports 39 block_time 300
config mac_based_access_control ports 40 max_users 128
config mac_based_access_control ports 40 aging_time 1440
config mac_based_access_control ports 40 block_time 300
config mac_based_access_control ports 41 max_users 128
config mac_based_access_control ports 41 aging_time 1440
config mac_based_access_control ports 41 block_time 300
config mac_based_access_control ports 42 max_users 128
config mac_based_access_control ports 42 aging_time 1440
config mac_based_access_control ports 42 block_time 300
config mac_based_access_control ports 43 max_users 128
config mac_based_access_control ports 43 aging_time 1440
config mac_based_access_control ports 43 block_time 300
config mac_based_access_control ports 44 max_users 128
config mac_based_access_control ports 44 aging_time 1440
config mac_based_access_control ports 44 block_time 300
config mac_based_access_control ports 45 max_users 128
config mac_based_access_control ports 45 aging_time 1440
config mac_based_access_control ports 45 block_time 300
config mac_based_access_control ports 46 max_users 128
config mac_based_access_control ports 46 aging_time 1440
config mac_based_access_control ports 46 block_time 300
config mac_based_access_control ports 47 max_users 128
config mac_based_access_control ports 47 aging_time 1440
config mac_based_access_control ports 47 block_time 300
config mac_based_access_control ports 48 max_users 128
config mac_based_access_control ports 48 aging_time 1440
config mac_based_access_control ports 48 block_time 300
config mac_based_access_control ports 49 max_users 128
config mac_based_access_control ports 49 aging_time 1440
config mac_based_access_control ports 49 block_time 300
config mac_based_access_control ports 50 max_users 128
config mac_based_access_control ports 50 aging_time 1440
config mac_based_access_control ports 50 block_time 300
config mac_based_access_control ports 51 max_users 128
config mac_based_access_control ports 51 aging_time 1440
config mac_based_access_control ports 51 block_time 300
config mac_based_access_control ports 52 max_users 128
config mac_based_access_control ports 52 aging_time 1440
config mac_based_access_control ports 52 block_time 300
config mac_based_access_control ports 1-52 mode host_based
config mac_based_access_control method local
config mac_based_access_control password default
config mac_based_access_control max_users no_limit
config mac_based_access_control trap state enable
config mac_based_access_control log state enable

# MCFILTER


# COMPOUND_AUTHENTICATION

config authentication ports 1-52 auth_mode host_based
config authentication ports 1-52 multi_authen_methods none
enable authorization attributes
config authentication server failover block

# LLDP-MED

config lldp_med fast_start repeat_count 4
config lldp_med log state disable
config lldp_med notification topo_change ports 1 state disable
config lldp_med notification topo_change ports 2 state disable
config lldp_med notification topo_change ports 3 state disable
config lldp_med notification topo_change ports 4 state disable
config lldp_med notification topo_change ports 5 state disable
config lldp_med notification topo_change ports 6 state disable
config lldp_med notification topo_change ports 7 state disable
config lldp_med notification topo_change ports 8 state disable
config lldp_med notification topo_change ports 9 state disable
config lldp_med notification topo_change ports 10 state disable
config lldp_med notification topo_change ports 11 state disable
config lldp_med notification topo_change ports 12 state disable
config lldp_med notification topo_change ports 13 state disable
config lldp_med notification topo_change ports 14 state disable
config lldp_med notification topo_change ports 15 state disable
config lldp_med notification topo_change ports 16 state disable
config lldp_med notification topo_change ports 17 state disable
config lldp_med notification topo_change ports 18 state disable
config lldp_med notification topo_change ports 19 state disable
config lldp_med notification topo_change ports 20 state disable
config lldp_med notification topo_change ports 21 state disable
config lldp_med notification topo_change ports 22 state disable
config lldp_med notification topo_change ports 23 state disable
config lldp_med notification topo_change ports 24 state disable
config lldp_med notification topo_change ports 25 state disable
config lldp_med notification topo_change ports 26 state disable
config lldp_med notification topo_change ports 27 state disable
config lldp_med notification topo_change ports 28 state disable
config lldp_med notification topo_change ports 29 state disable
config lldp_med notification topo_change ports 30 state disable
config lldp_med notification topo_change ports 31 state disable
config lldp_med notification topo_change ports 32 state disable
config lldp_med notification topo_change ports 33 state disable
config lldp_med notification topo_change ports 34 state disable
config lldp_med notification topo_change ports 35 state disable
config lldp_med notification topo_change ports 36 state disable
config lldp_med notification topo_change ports 37 state disable
config lldp_med notification topo_change ports 38 state disable
config lldp_med notification topo_change ports 39 state disable
config lldp_med notification topo_change ports 40 state disable
config lldp_med notification topo_change ports 41 state disable
config lldp_med notification topo_change ports 42 state disable
config lldp_med notification topo_change ports 43 state disable
config lldp_med notification topo_change ports 44 state disable
config lldp_med notification topo_change ports 45 state disable
config lldp_med notification topo_change ports 46 state disable
config lldp_med notification topo_change ports 47 state disable
config lldp_med notification topo_change ports 48 state disable
config lldp_med notification topo_change ports 49 state disable
config lldp_med notification topo_change ports 50 state disable
config lldp_med notification topo_change ports 51 state disable
config lldp_med notification topo_change ports 52 state disable

# IGMP_SNOOPING

disable igmp_snooping
config igmp_snooping data_driven_learning max_learned_entry 128
config igmp_snooping vlan_name default fast_leave disable report_suppression enable state disable
config igmp_snooping querier vlan_name default query_interval 125 max_response_time 10 robustness_variable 2 last_member_query_interval 1 state disable version 3
config igmp_snooping data_driven_learning vlan_name default expiry_time 260 state enable aged_out disable
config igmp_snooping vlan_name local_mgmt fast_leave disable report_suppression enable state disable
config igmp_snooping querier vlan_name local_mgmt query_interval 125 max_response_time 10 robustness_variable 2 last_member_query_interval 1 state disable version 3
config igmp_snooping data_driven_learning vlan_name local_mgmt expiry_time 260 state enable aged_out disable
config igmp_snooping vlan_name qnq fast_leave disable report_suppression enable state disable
config igmp_snooping querier vlan_name qnq query_interval 125 max_response_time 10 robustness_variable 2 last_member_query_interval 1 state disable version 3
config igmp_snooping data_driven_learning vlan_name qnq expiry_time 260 state enable aged_out disable
config igmp_snooping vlan_name office fast_leave disable report_suppression enable state disable
config igmp_snooping querier vlan_name office query_interval 125 max_response_time 10 robustness_variable 2 last_member_query_interval 1 state disable version 3
config igmp_snooping data_driven_learning vlan_name office expiry_time 260 state enable aged_out disable
config igmp_snooping vlan_name 111 fast_leave disable report_suppression enable state disable
config igmp_snooping querier vlan_name 111 query_interval 125 max_response_time 10 robustness_variable 2 last_member_query_interval 1 state disable version 3
config igmp_snooping data_driven_learning vlan_name 111 expiry_time 260 state enable aged_out disable
config cpu_filter l3_control_pkt 1-52 all state disable

# MLDSNP

disable mld_snooping
config mld_snooping data_driven_learning max_learned_entry 128
config mld_snooping vlan_name default fast_done disable report_suppression enable state disable
config mld_snooping querier vlan_name default query_interval 125 max_response_time 10 robustness_variable 2 last_listener_query_interval 1 state disable version 2
config mld_snooping data_driven_learning vlan_name default expiry_time 260 state enable aged_out disable
config mld_snooping vlan_name local_mgmt fast_done disable report_suppression enable state disable
config mld_snooping querier vlan_name local_mgmt query_interval 125 max_response_time 10 robustness_variable 2 last_listener_query_interval 1 state disable version 2
config mld_snooping data_driven_learning vlan_name local_mgmt expiry_time 260 state enable aged_out disable
config mld_snooping vlan_name qnq fast_done disable report_suppression enable state disable
config mld_snooping querier vlan_name qnq query_interval 125 max_response_time 10 robustness_variable 2 last_listener_query_interval 1 state disable version 2
config mld_snooping data_driven_learning vlan_name qnq expiry_time 260 state enable aged_out disable
config mld_snooping vlan_name office fast_done disable report_suppression enable state disable
config mld_snooping querier vlan_name office query_interval 125 max_response_time 10 robustness_variable 2 last_listener_query_interval 1 state disable version 2
config mld_snooping data_driven_learning vlan_name office expiry_time 260 state enable aged_out disable
config mld_snooping vlan_name 111 fast_done disable report_suppression enable state disable
config mld_snooping querier vlan_name 111 query_interval 125 max_response_time 10 robustness_variable 2 last_listener_query_interval 1 state disable version 2
config mld_snooping data_driven_learning vlan_name 111 expiry_time 260 state enable aged_out disable

# ACCESS_AUTHENTICATION_CONTROL

config authen_login default method local
config authen_enable default method local_enable
config accounting default method none
config authen application console login default
config authen application console enable default
config authen application telnet login default
config authen application telnet enable default
config authen application ssh login default
config authen application ssh enable default
config authen application http login default
config authen application http enable default
config authen parameter response_timeout 30
config authen parameter attempt 3
disable authen_policy
config accounting service network state disable
config accounting service shell state disable
config accounting service system state disable
config accounting service command administrator none
config accounting service command operator none
config accounting service command power_user none
config accounting service command user none
disable authen_policy_encryption

# DHCP_LOCAL_RELAY

disable dhcp_local_relay
config dhcp_local_relay option_82 remote_id default
config dhcp_local_relay option_82 circuit_id default
config dhcp_local_relay option_82 ports 1-52 policy keep

# AAA_LOCAL_ENABLE_PASSWORD

config admin local_enable




# DHCP_RELAY

disable dhcp_relay
config dhcp_relay hops 4 time 0
config dhcp_relay option_82 state disable
config dhcp_relay option_82 check disable
config dhcp_relay option_82 policy replace
config dhcp_relay option_82 remote_id default
config dhcp_relay option_82 circuit_id default
config dhcp_relay option_60 state disable
config dhcp_relay option_61 state disable
config dhcp_relay option_60 default mode drop
config dhcp_relay option_61 default drop
config dhcp_relay ports 1-52 state enable

# Firm


# NDP

config ipv6 nd ns ipif System retrans_time 0

# ARP

config arp_aging time 20
config gratuitous_arp send ipif_status_up enable
config gratuitous_arp send dup_ip_detected enable
config gratuitous_arp learning enable

# SNP_AUTH

config igmp access_authentication ports 1-52 state disable

# ROUTE

create iproute default 10.230.84.1 1 primary

# DHCPV6_LOCAL_RELAY

disable dhcpv6_local_relay

# RELAY6

config dhcpv6_relay hop_count 4
disable dhcpv6_relay
config dhcpv6_relay option_37 state disable check disable
config dhcpv6_relay option_37 remote_id default
config dhcpv6_relay option_18 state disable check disable
config dhcpv6_relay option_18 interface_id default
config dhcpv6_relay ipif System state enable
