 Заголовок сообщения: SNMP мониторинг DSR-250N
СообщениеДобавлено: Пн дек 19, 2016 12:44
Не в сети

Зарегистрирован: Ср фев 06, 2013 11:15
Сообщений: 2
Здравствуйте!

Озадачился вопросом мониторинга посредством zabbix домашнего роутера в целях самообразования и вообще.
Произвел необходимые настройки snmp на роутре, установил zabbix.
Дальше возникла "непонятка".
Опрос роутера выдает следующее:
iso.3.6.1.2.1.2.2.1.2.1 = STRING: "LAN-p1"
iso.3.6.1.2.1.2.2.1.2.2 = STRING: "LAN-p2"
iso.3.6.1.2.1.2.2.1.2.3 = STRING: "LAN-p3"
iso.3.6.1.2.1.2.2.1.2.4 = STRING: "LAN-p4"
iso.3.6.1.2.1.2.2.1.2.5 = STRING: "LAN-p5"
Скрытый текст: показать
iso.3.6.1.2.1.2.2.1.2.6 = STRING: "LAN-p6"
iso.3.6.1.2.1.2.2.1.2.7 = STRING: "LAN-p7"
iso.3.6.1.2.1.2.2.1.2.8 = STRING: "LAN-p8"
iso.3.6.1.2.1.2.2.1.2.9 = STRING: "WAN1"
iso.3.6.1.2.1.2.2.1.2.10 = STRING: "lo"
iso.3.6.1.2.1.2.2.1.2.11 = STRING: "gre0"
iso.3.6.1.2.1.2.2.1.2.12 = STRING: "sit0"
iso.3.6.1.2.1.2.2.1.2.13 = STRING: "ip6tnl0"
iso.3.6.1.2.1.2.2.1.2.14 = STRING: "eth1"
iso.3.6.1.2.1.2.2.1.2.15 = STRING: "eth2"
iso.3.6.1.2.1.2.2.1.2.16 = STRING: "fp"
iso.3.6.1.2.1.2.2.1.2.17 = STRING: "sppe"
iso.3.6.1.2.1.2.2.1.2.18 = STRING: "vap0"
iso.3.6.1.2.1.2.2.1.2.19 = STRING: "vap1"
iso.3.6.1.2.1.2.2.1.2.20 = STRING: "vap2"
iso.3.6.1.2.1.2.2.1.2.21 = STRING: "vap3"
iso.3.6.1.2.1.2.2.1.2.22 = STRING: "wds0"
iso.3.6.1.2.1.2.2.1.2.23 = STRING: "wds1"
iso.3.6.1.2.1.2.2.1.2.24 = STRING: "wds2"
iso.3.6.1.2.1.2.2.1.2.25 = STRING: "wds3"


а теперь собственно сами счетчики трафика
входящий
iso.3.6.1.2.1.2.2.1.10.1 = Counter32: 857548805
iso.3.6.1.2.1.2.2.1.10.2 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.3 = Counter32: 150738
iso.3.6.1.2.1.2.2.1.10.4 = Counter32: 2443204650
iso.3.6.1.2.1.2.2.1.10.5 = Counter32: 547638535
Скрытый текст: показать
iso.3.6.1.2.1.2.2.1.10.6 = Counter32: 86499702
iso.3.6.1.2.1.2.2.1.10.7 = Counter32: 3760375886
iso.3.6.1.2.1.2.2.1.10.8 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.9 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.10 = Counter32: 3913125
iso.3.6.1.2.1.2.2.1.10.11 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.12 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.13 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.14 = Counter32: 1366818186
iso.3.6.1.2.1.2.2.1.10.15 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.16 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.17 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.18 = Counter32: 1209299232
iso.3.6.1.2.1.2.2.1.10.19 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.20 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.21 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.22 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.23 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.24 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.25 = Counter32: 0


исходящий
iso.3.6.1.2.1.2.2.1.16.1 = Counter32: 1960090536
iso.3.6.1.2.1.2.2.1.16.2 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.3 = Counter32: 9901272
iso.3.6.1.2.1.2.2.1.16.4 = Counter32: 945076400
iso.3.6.1.2.1.2.2.1.16.5 = Counter32: 966552292
iso.3.6.1.2.1.2.2.1.16.6 = Counter32: 2732087478
Скрытый текст: показать
iso.3.6.1.2.1.2.2.1.16.7 = Counter32: 3052365245
iso.3.6.1.2.1.2.2.1.16.8 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.9 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.10 = Counter32: 3913125
iso.3.6.1.2.1.2.2.1.16.11 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.12 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.13 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.14 = Counter32: 84850808
iso.3.6.1.2.1.2.2.1.16.15 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.16 = Counter32: 954356873
iso.3.6.1.2.1.2.2.1.16.17 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.18 = Counter32: 2767262948
iso.3.6.1.2.1.2.2.1.16.19 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.20 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.21 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.22 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.23 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.24 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.25 = Counter32: 0


Собственно вопрос: почему на 9-м интерфейсе, который помечен как WAN нули?

Для интереса развернул cacti, глубоко не залезал, но там есть какой-то общий параметр "трафик интерфейса", который вроде бы показывает истину.
Он его вычисляет что ли?
Трафик WiFi тоже вопросов не вызывает.
Трафик портов восьмипортового свича отображается нормально, проверял тестовыми закачками. А вот трафика WAN нет ни на одном источнике данных по полученным OID.

Версия прошивки 2.11RU

Вот что получает от роутера caсti
+ Running data query [1].
+ Found type = '3' [SNMP Query].
+ Found data query XML file at '/usr/share/cacti/site/resource/snmp_queries/interface.xml'
+ XML file parsed ok.
+ Executing SNMP get for num of indexes @ '.1.3.6.1.2.1.2.1.0' Index Count: 25
+ Executing SNMP walk for list of indexes @ '.1.3.6.1.2.1.2.2.1.1' Index Count: 25
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.1' value: '1'
Скрытый текст: показать
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.2' value: '2'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.3' value: '3'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.4' value: '4'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.5' value: '5'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.6' value: '6'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.7' value: '7'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.8' value: '8'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.9' value: '9'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.10' value: '10'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.11' value: '11'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.12' value: '12'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.13' value: '13'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.14' value: '14'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.15' value: '15'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.16' value: '16'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.17' value: '17'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.18' value: '18'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.19' value: '19'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.20' value: '20'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.21' value: '21'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.22' value: '22'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.23' value: '23'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.24' value: '24'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.25' value: '25'
+ Located input field 'ifIndex' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.1'
+ Found item [ifIndex='1'] index: 1 [from value]
+ Found item [ifIndex='2'] index: 2 [from value]
+ Found item [ifIndex='3'] index: 3 [from value]
+ Found item [ifIndex='4'] index: 4 [from value]
+ Found item [ifIndex='5'] index: 5 [from value]
+ Found item [ifIndex='6'] index: 6 [from value]
+ Found item [ifIndex='7'] index: 7 [from value]
+ Found item [ifIndex='8'] index: 8 [from value]
+ Found item [ifIndex='9'] index: 9 [from value]
+ Found item [ifIndex='10'] index: 10 [from value]
+ Found item [ifIndex='11'] index: 11 [from value]
+ Found item [ifIndex='12'] index: 12 [from value]
+ Found item [ifIndex='13'] index: 13 [from value]
+ Found item [ifIndex='14'] index: 14 [from value]
+ Found item [ifIndex='15'] index: 15 [from value]
+ Found item [ifIndex='16'] index: 16 [from value]
+ Found item [ifIndex='17'] index: 17 [from value]
+ Found item [ifIndex='18'] index: 18 [from value]
+ Found item [ifIndex='19'] index: 19 [from value]
+ Found item [ifIndex='20'] index: 20 [from value]
+ Found item [ifIndex='21'] index: 21 [from value]
+ Found item [ifIndex='22'] index: 22 [from value]
+ Found item [ifIndex='23'] index: 23 [from value]
+ Found item [ifIndex='24'] index: 24 [from value]
+ Found item [ifIndex='25'] index: 25 [from value]
+ Located input field 'ifOperStatus' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.8'
+ Found item [ifOperStatus='Down'] index: 1 [from value]
+ Found item [ifOperStatus='Down'] index: 2 [from value]
+ Found item [ifOperStatus='Down'] index: 3 [from value]
+ Found item [ifOperStatus='Up'] index: 4 [from value]
+ Found item [ifOperStatus='Up'] index: 5 [from value]
+ Found item [ifOperStatus='Down'] index: 6 [from value]
+ Found item [ifOperStatus='Down'] index: 7 [from value]
+ Found item [ifOperStatus='Down'] index: 8 [from value]
+ Found item [ifOperStatus='Up'] index: 9 [from value]
+ Found item [ifOperStatus='Up'] index: 10 [from value]
+ Found item [ifOperStatus='Down'] index: 11 [from value]
+ Found item [ifOperStatus='Down'] index: 12 [from value]
+ Found item [ifOperStatus='Down'] index: 13 [from value]
+ Found item [ifOperStatus='Up'] index: 14 [from value]
+ Found item [ifOperStatus='Down'] index: 15 [from value]
+ Found item [ifOperStatus='Up'] index: 16 [from value]
+ Found item [ifOperStatus='Down'] index: 17 [from value]
+ Found item [ifOperStatus='Up'] index: 18 [from value]
+ Found item [ifOperStatus='Down'] index: 19 [from value]
+ Found item [ifOperStatus='Down'] index: 20 [from value]
+ Found item [ifOperStatus='Down'] index: 21 [from value]
+ Found item [ifOperStatus='Down'] index: 22 [from value]
+ Found item [ifOperStatus='Down'] index: 23 [from value]
+ Found item [ifOperStatus='Down'] index: 24 [from value]
+ Found item [ifOperStatus='Down'] index: 25 [from value]
+ Located input field 'ifDescr' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.2'
+ Located input field 'ifName' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.31.1.1.1.1'
+ Located input field 'ifAlias' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.31.1.1.1.18'
+ Located input field 'ifType' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.3'
+ Located input field 'ifSpeed' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.5'
+ Located input field 'ifHighSpeed' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.31.1.1.1.15'
+ Located input field 'ifHwAddr' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.6'
+ Located input field 'ifIP' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.4.20.1.2'


Ни слова о счетчиках, но тем не менее он их откуда-то берёт :)

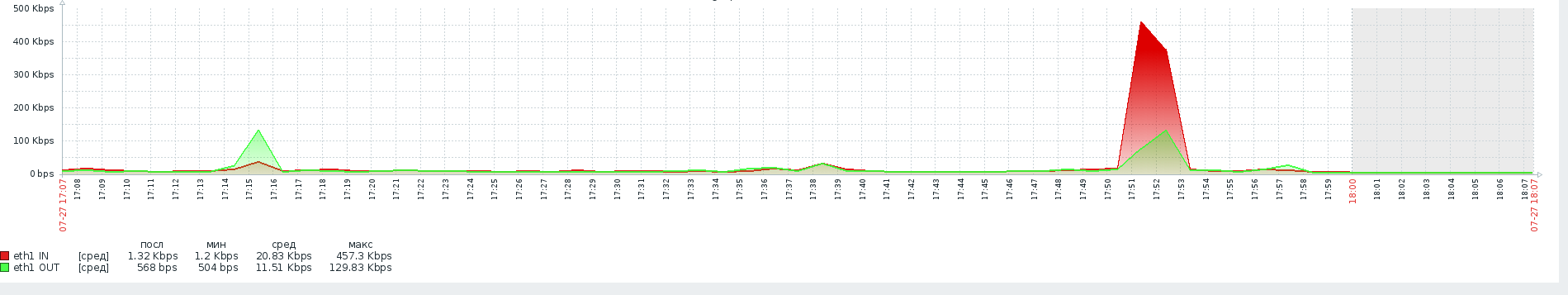

Вложение:
cacti.JPG [ 202.29 KiB | Просмотров: 782 ]


Вернуться наверх
 Профиль

 Заголовок сообщения: Re: SNMP мониторинг DSR-250N
СообщениеДобавлено: Пт июл 27, 2018 11:12
Не в сети

Зарегистрирован: Пт июл 27, 2018 11:04
Сообщений: 1
alexeynr писал(а):
Здравствуйте!

Озадачился вопросом мониторинга посредством zabbix домашнего роутера в целях самообразования и вообще.
Произвел необходимые настройки snmp на роутре, установил zabbix.
Дальше возникла "непонятка".
Опрос роутера выдает следующее:
iso.3.6.1.2.1.2.2.1.2.1 = STRING: "LAN-p1"
iso.3.6.1.2.1.2.2.1.2.2 = STRING: "LAN-p2"
iso.3.6.1.2.1.2.2.1.2.3 = STRING: "LAN-p3"
iso.3.6.1.2.1.2.2.1.2.4 = STRING: "LAN-p4"
iso.3.6.1.2.1.2.2.1.2.5 = STRING: "LAN-p5"
Скрытый текст: показать
iso.3.6.1.2.1.2.2.1.2.6 = STRING: "LAN-p6"
iso.3.6.1.2.1.2.2.1.2.7 = STRING: "LAN-p7"
iso.3.6.1.2.1.2.2.1.2.8 = STRING: "LAN-p8"
iso.3.6.1.2.1.2.2.1.2.9 = STRING: "WAN1"
iso.3.6.1.2.1.2.2.1.2.10 = STRING: "lo"
iso.3.6.1.2.1.2.2.1.2.11 = STRING: "gre0"
iso.3.6.1.2.1.2.2.1.2.12 = STRING: "sit0"
iso.3.6.1.2.1.2.2.1.2.13 = STRING: "ip6tnl0"
iso.3.6.1.2.1.2.2.1.2.14 = STRING: "eth1"
iso.3.6.1.2.1.2.2.1.2.15 = STRING: "eth2"
iso.3.6.1.2.1.2.2.1.2.16 = STRING: "fp"
iso.3.6.1.2.1.2.2.1.2.17 = STRING: "sppe"
iso.3.6.1.2.1.2.2.1.2.18 = STRING: "vap0"
iso.3.6.1.2.1.2.2.1.2.19 = STRING: "vap1"
iso.3.6.1.2.1.2.2.1.2.20 = STRING: "vap2"
iso.3.6.1.2.1.2.2.1.2.21 = STRING: "vap3"
iso.3.6.1.2.1.2.2.1.2.22 = STRING: "wds0"
iso.3.6.1.2.1.2.2.1.2.23 = STRING: "wds1"
iso.3.6.1.2.1.2.2.1.2.24 = STRING: "wds2"
iso.3.6.1.2.1.2.2.1.2.25 = STRING: "wds3"


а теперь собственно сами счетчики трафика
входящий
iso.3.6.1.2.1.2.2.1.10.1 = Counter32: 857548805
iso.3.6.1.2.1.2.2.1.10.2 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.3 = Counter32: 150738
iso.3.6.1.2.1.2.2.1.10.4 = Counter32: 2443204650
iso.3.6.1.2.1.2.2.1.10.5 = Counter32: 547638535
Скрытый текст: показать
iso.3.6.1.2.1.2.2.1.10.6 = Counter32: 86499702
iso.3.6.1.2.1.2.2.1.10.7 = Counter32: 3760375886
iso.3.6.1.2.1.2.2.1.10.8 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.9 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.10 = Counter32: 3913125
iso.3.6.1.2.1.2.2.1.10.11 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.12 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.13 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.14 = Counter32: 1366818186
iso.3.6.1.2.1.2.2.1.10.15 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.16 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.17 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.18 = Counter32: 1209299232
iso.3.6.1.2.1.2.2.1.10.19 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.20 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.21 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.22 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.23 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.24 = Counter32: 0
iso.3.6.1.2.1.2.2.1.10.25 = Counter32: 0


исходящий
iso.3.6.1.2.1.2.2.1.16.1 = Counter32: 1960090536
iso.3.6.1.2.1.2.2.1.16.2 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.3 = Counter32: 9901272
iso.3.6.1.2.1.2.2.1.16.4 = Counter32: 945076400
iso.3.6.1.2.1.2.2.1.16.5 = Counter32: 966552292
iso.3.6.1.2.1.2.2.1.16.6 = Counter32: 2732087478
Скрытый текст: показать
iso.3.6.1.2.1.2.2.1.16.7 = Counter32: 3052365245
iso.3.6.1.2.1.2.2.1.16.8 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.9 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.10 = Counter32: 3913125
iso.3.6.1.2.1.2.2.1.16.11 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.12 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.13 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.14 = Counter32: 84850808
iso.3.6.1.2.1.2.2.1.16.15 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.16 = Counter32: 954356873
iso.3.6.1.2.1.2.2.1.16.17 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.18 = Counter32: 2767262948
iso.3.6.1.2.1.2.2.1.16.19 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.20 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.21 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.22 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.23 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.24 = Counter32: 0
iso.3.6.1.2.1.2.2.1.16.25 = Counter32: 0


Собственно вопрос: почему на 9-м интерфейсе, который помечен как WAN нули?

Для интереса развернул cacti, глубоко не залезал, но там есть какой-то общий параметр "трафик интерфейса", который вроде бы показывает истину.
Он его вычисляет что ли?
Трафик WiFi тоже вопросов не вызывает.
Трафик портов восьмипортового свича отображается нормально, проверял тестовыми закачками. А вот трафика WAN нет ни на одном источнике данных по полученным OID.

Версия прошивки 2.11RU

Вот что получает от роутера caсti
+ Running data query [1].
+ Found type = '3' [SNMP Query].
+ Found data query XML file at '/usr/share/cacti/site/resource/snmp_queries/interface.xml'
+ XML file parsed ok.
+ Executing SNMP get for num of indexes @ '.1.3.6.1.2.1.2.1.0' Index Count: 25
+ Executing SNMP walk for list of indexes @ '.1.3.6.1.2.1.2.2.1.1' Index Count: 25
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.1' value: '1'
Скрытый текст: показать
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.2' value: '2'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.3' value: '3'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.4' value: '4'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.5' value: '5'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.6' value: '6'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.7' value: '7'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.8' value: '8'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.9' value: '9'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.10' value: '10'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.11' value: '11'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.12' value: '12'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.13' value: '13'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.14' value: '14'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.15' value: '15'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.16' value: '16'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.17' value: '17'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.18' value: '18'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.19' value: '19'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.20' value: '20'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.21' value: '21'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.22' value: '22'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.23' value: '23'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.24' value: '24'
+ Index found at OID: 'iso.3.6.1.2.1.2.2.1.1.25' value: '25'
+ Located input field 'ifIndex' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.1'
+ Found item [ifIndex='1'] index: 1 [from value]
+ Found item [ifIndex='2'] index: 2 [from value]
+ Found item [ifIndex='3'] index: 3 [from value]
+ Found item [ifIndex='4'] index: 4 [from value]
+ Found item [ifIndex='5'] index: 5 [from value]
+ Found item [ifIndex='6'] index: 6 [from value]
+ Found item [ifIndex='7'] index: 7 [from value]
+ Found item [ifIndex='8'] index: 8 [from value]
+ Found item [ifIndex='9'] index: 9 [from value]
+ Found item [ifIndex='10'] index: 10 [from value]
+ Found item [ifIndex='11'] index: 11 [from value]
+ Found item [ifIndex='12'] index: 12 [from value]
+ Found item [ifIndex='13'] index: 13 [from value]
+ Found item [ifIndex='14'] index: 14 [from value]
+ Found item [ifIndex='15'] index: 15 [from value]
+ Found item [ifIndex='16'] index: 16 [from value]
+ Found item [ifIndex='17'] index: 17 [from value]
+ Found item [ifIndex='18'] index: 18 [from value]
+ Found item [ifIndex='19'] index: 19 [from value]
+ Found item [ifIndex='20'] index: 20 [from value]
+ Found item [ifIndex='21'] index: 21 [from value]
+ Found item [ifIndex='22'] index: 22 [from value]
+ Found item [ifIndex='23'] index: 23 [from value]
+ Found item [ifIndex='24'] index: 24 [from value]
+ Found item [ifIndex='25'] index: 25 [from value]
+ Located input field 'ifOperStatus' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.8'
+ Found item [ifOperStatus='Down'] index: 1 [from value]
+ Found item [ifOperStatus='Down'] index: 2 [from value]
+ Found item [ifOperStatus='Down'] index: 3 [from value]
+ Found item [ifOperStatus='Up'] index: 4 [from value]
+ Found item [ifOperStatus='Up'] index: 5 [from value]
+ Found item [ifOperStatus='Down'] index: 6 [from value]
+ Found item [ifOperStatus='Down'] index: 7 [from value]
+ Found item [ifOperStatus='Down'] index: 8 [from value]
+ Found item [ifOperStatus='Up'] index: 9 [from value]
+ Found item [ifOperStatus='Up'] index: 10 [from value]
+ Found item [ifOperStatus='Down'] index: 11 [from value]
+ Found item [ifOperStatus='Down'] index: 12 [from value]
+ Found item [ifOperStatus='Down'] index: 13 [from value]
+ Found item [ifOperStatus='Up'] index: 14 [from value]
+ Found item [ifOperStatus='Down'] index: 15 [from value]
+ Found item [ifOperStatus='Up'] index: 16 [from value]
+ Found item [ifOperStatus='Down'] index: 17 [from value]
+ Found item [ifOperStatus='Up'] index: 18 [from value]
+ Found item [ifOperStatus='Down'] index: 19 [from value]
+ Found item [ifOperStatus='Down'] index: 20 [from value]
+ Found item [ifOperStatus='Down'] index: 21 [from value]
+ Found item [ifOperStatus='Down'] index: 22 [from value]
+ Found item [ifOperStatus='Down'] index: 23 [from value]
+ Found item [ifOperStatus='Down'] index: 24 [from value]
+ Found item [ifOperStatus='Down'] index: 25 [from value]
+ Located input field 'ifDescr' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.2'
+ Located input field 'ifName' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.31.1.1.1.1'
+ Located input field 'ifAlias' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.31.1.1.1.18'
+ Located input field 'ifType' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.3'
+ Located input field 'ifSpeed' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.5'
+ Located input field 'ifHighSpeed' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.31.1.1.1.15'
+ Located input field 'ifHwAddr' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.2.2.1.6'
+ Located input field 'ifIP' [walk]
+ Executing SNMP walk for data @ '.1.3.6.1.2.1.4.20.1.2'


Ни слова о счетчиках, но тем не менее он их откуда-то берёт :)
Вложение:
Вложение cacti.JPG больше недоступно.


Берет он их из Oid eth1

iso.3.6.1.2.1.2.2.1.2.14 = STRING: "eth1"
out counters
iso.3.6.1.2.1.2.2.1.16.14
in counters
iso.3.6.1.2.1.2.2.1.10.14

Вложение:
graph.PNG [ 35.15 KiB | Просмотров: 316 ]


Вложения:
Комментарий к файлу: Шаблон с мониторингом eth1 zabbix 3.4
zbx_DSR-250N.zip [1.16 KiB]
Скачиваний: 33
Вернуться наверх
 Профиль

Показать сообщения за:  Сортировать по:
Начать новую тему Ответить на тему  [ Сообщений: 2 ]

Часовой пояс: UTC + 3 часа


Кто сейчас на форуме

Сейчас этот форум просматривают: Google [Bot] и гости: 26


Вы не можете начинать темы
Вы не можете отвечать на сообщения
Вы не можете редактировать свои сообщения
Вы не можете удалять свои сообщения
Вы не можете добавлять вложения

Найти:
Перейти:
Создано на основе phpBB® Forum Software © phpBB Group
Русская поддержка phpBB
